index / digital / vegas shade fig. 22 — digital

vegas shade

15 plates
vegas shade — plate 01

description

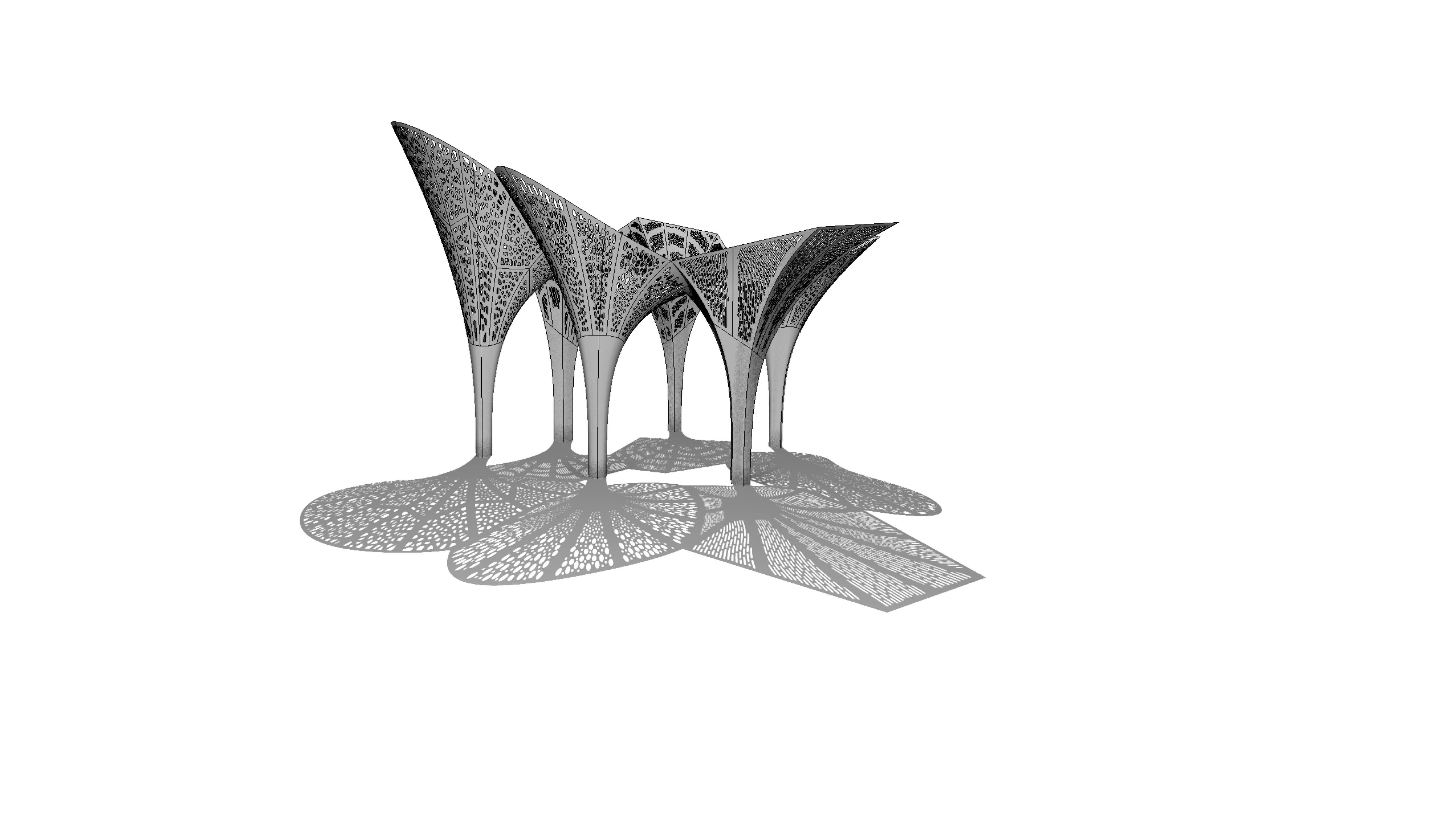

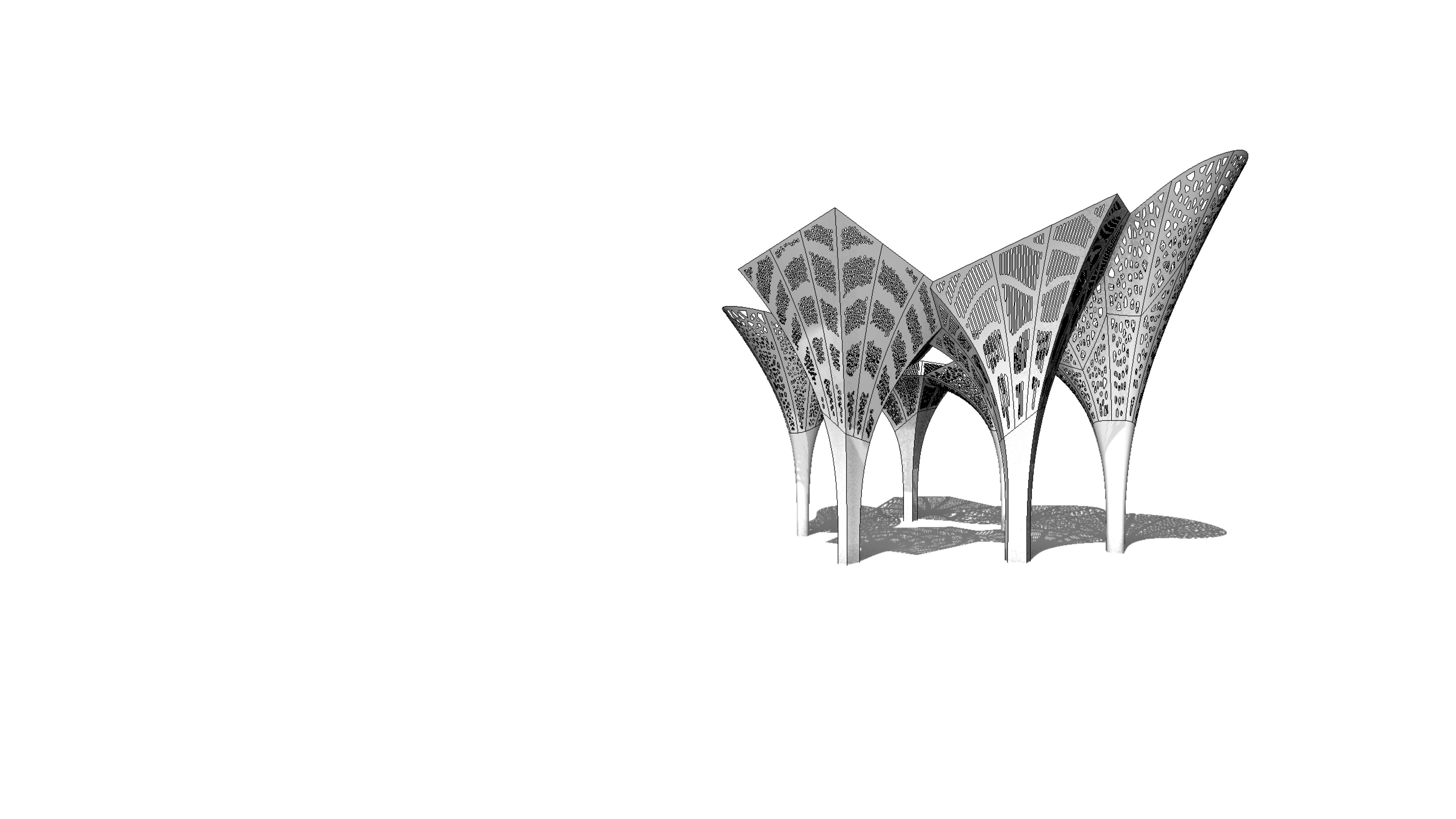

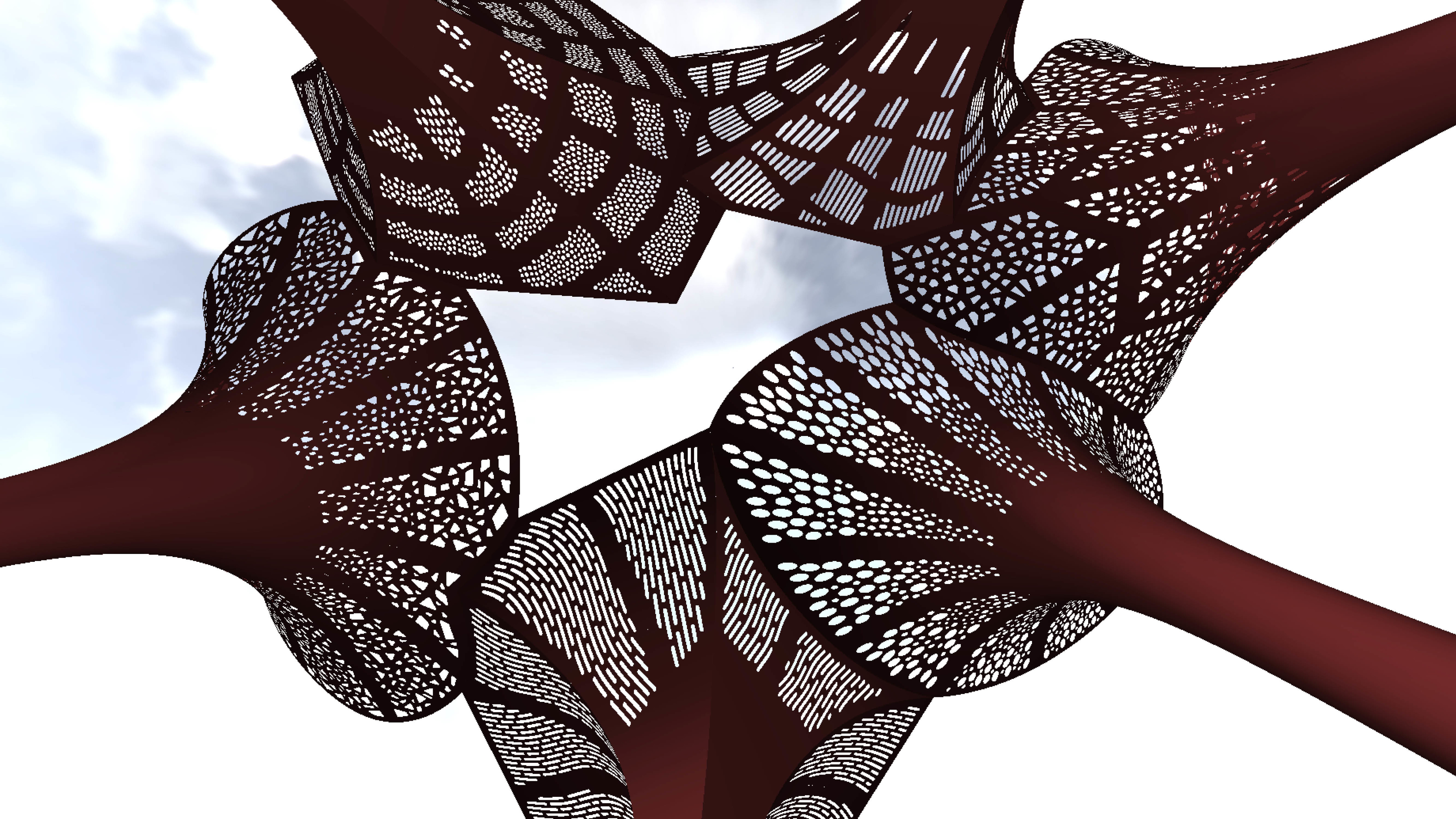

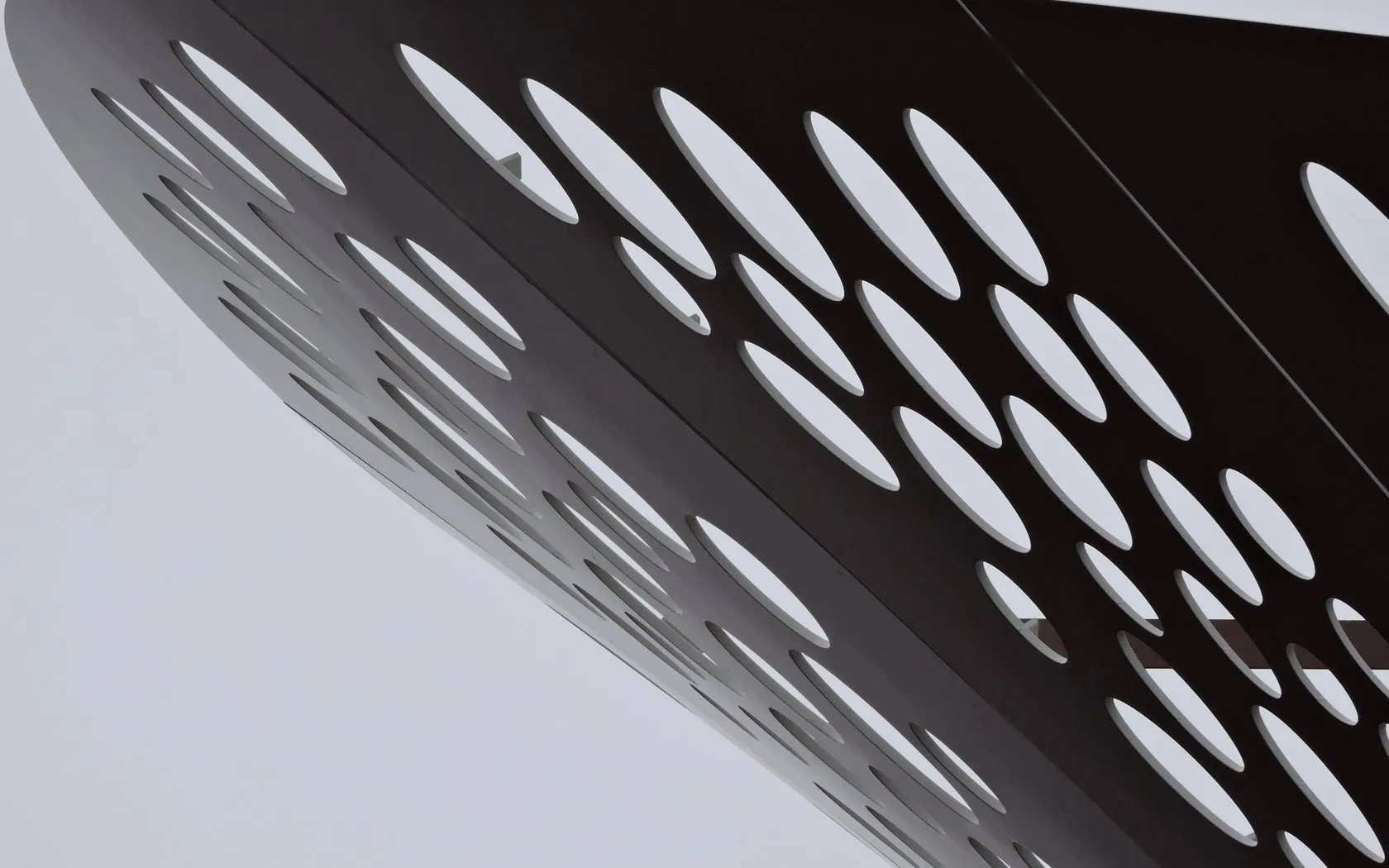

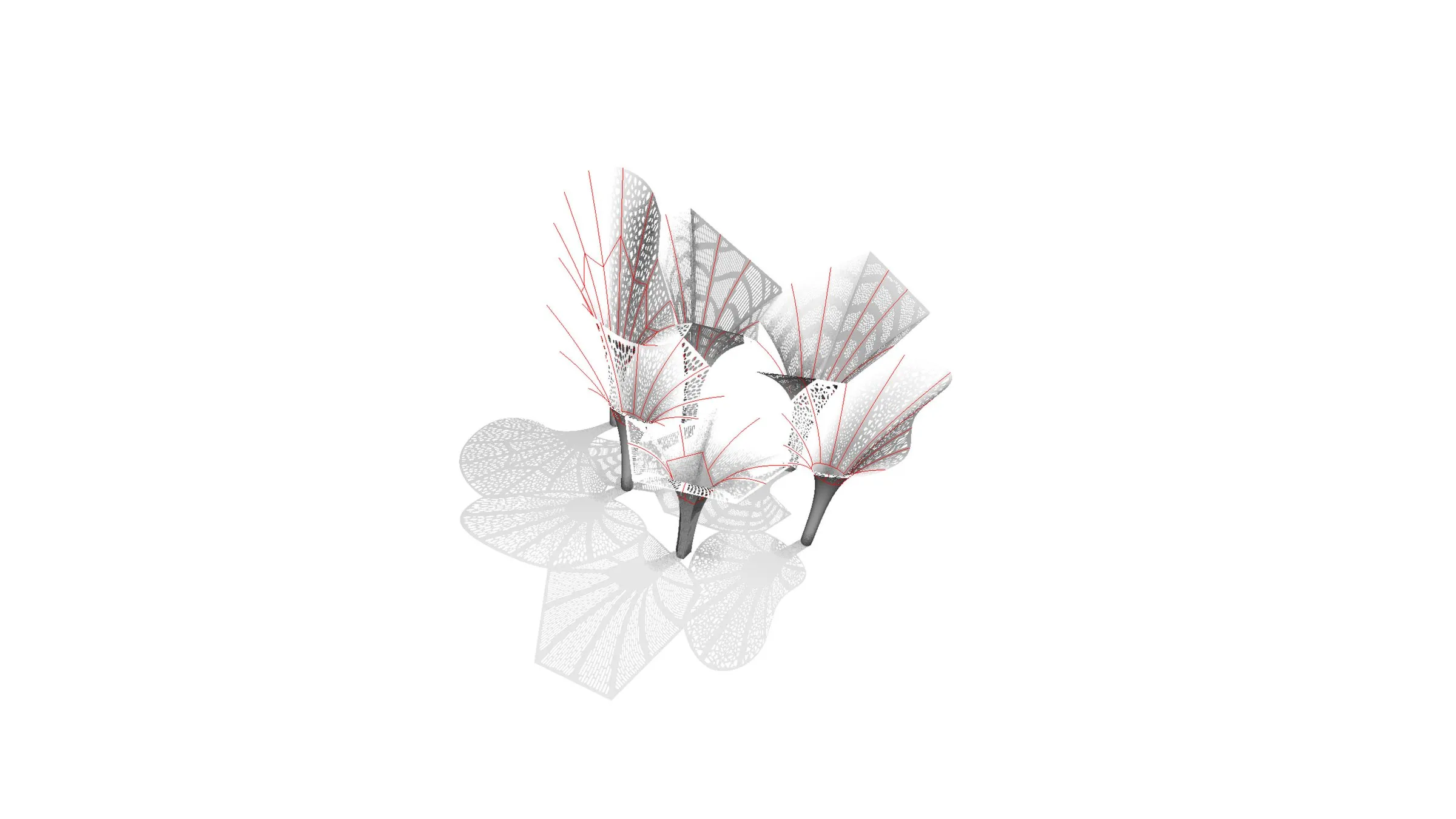

A cluster of shade structures is modeled as tapered columns that flare into tilted, petal-like canopies. Each canopy is a curved steel surface perforated with elongated openings that grade in size from stem to edge, set in radiating bands. The canopies lean in different directions and overlap in plan.

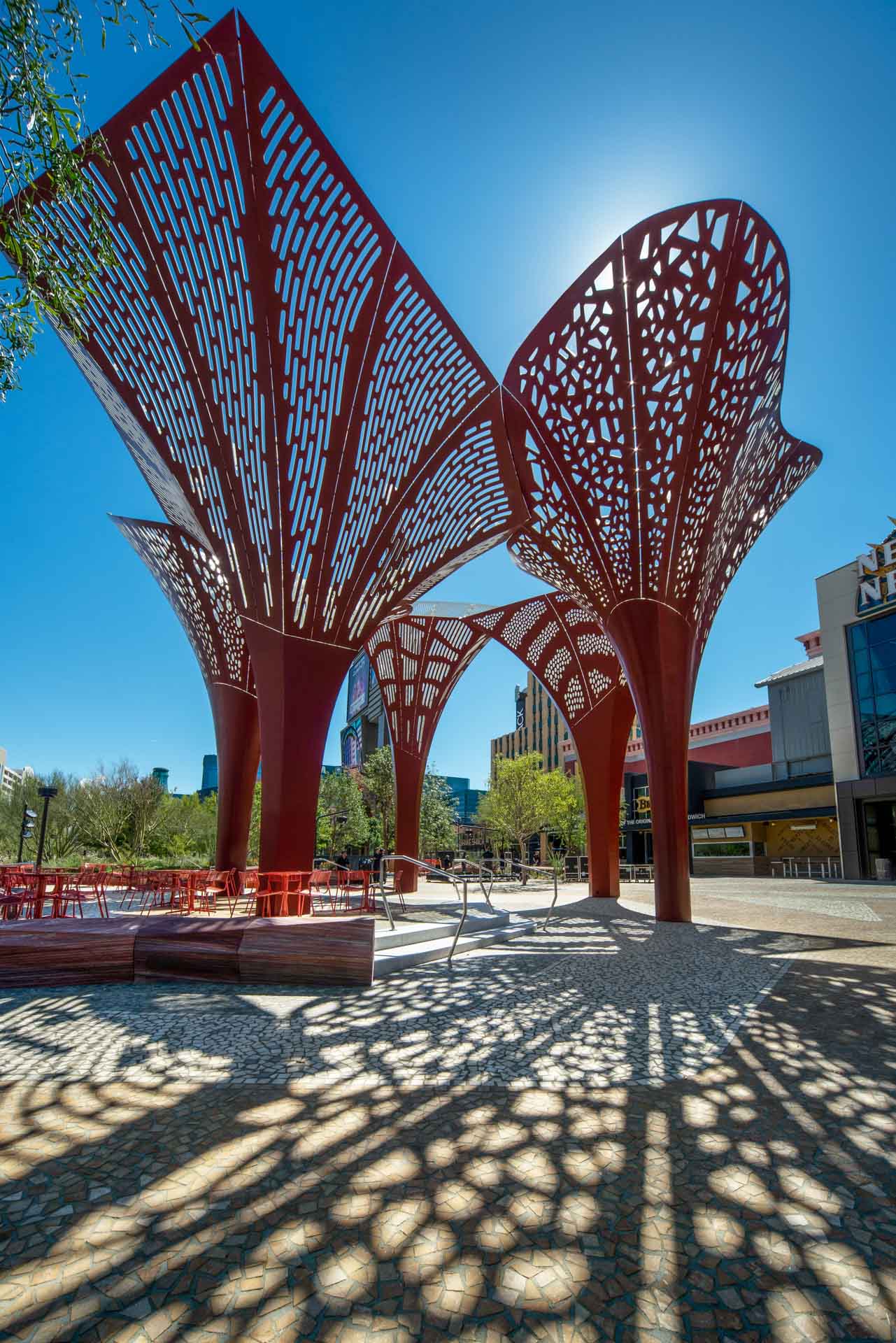

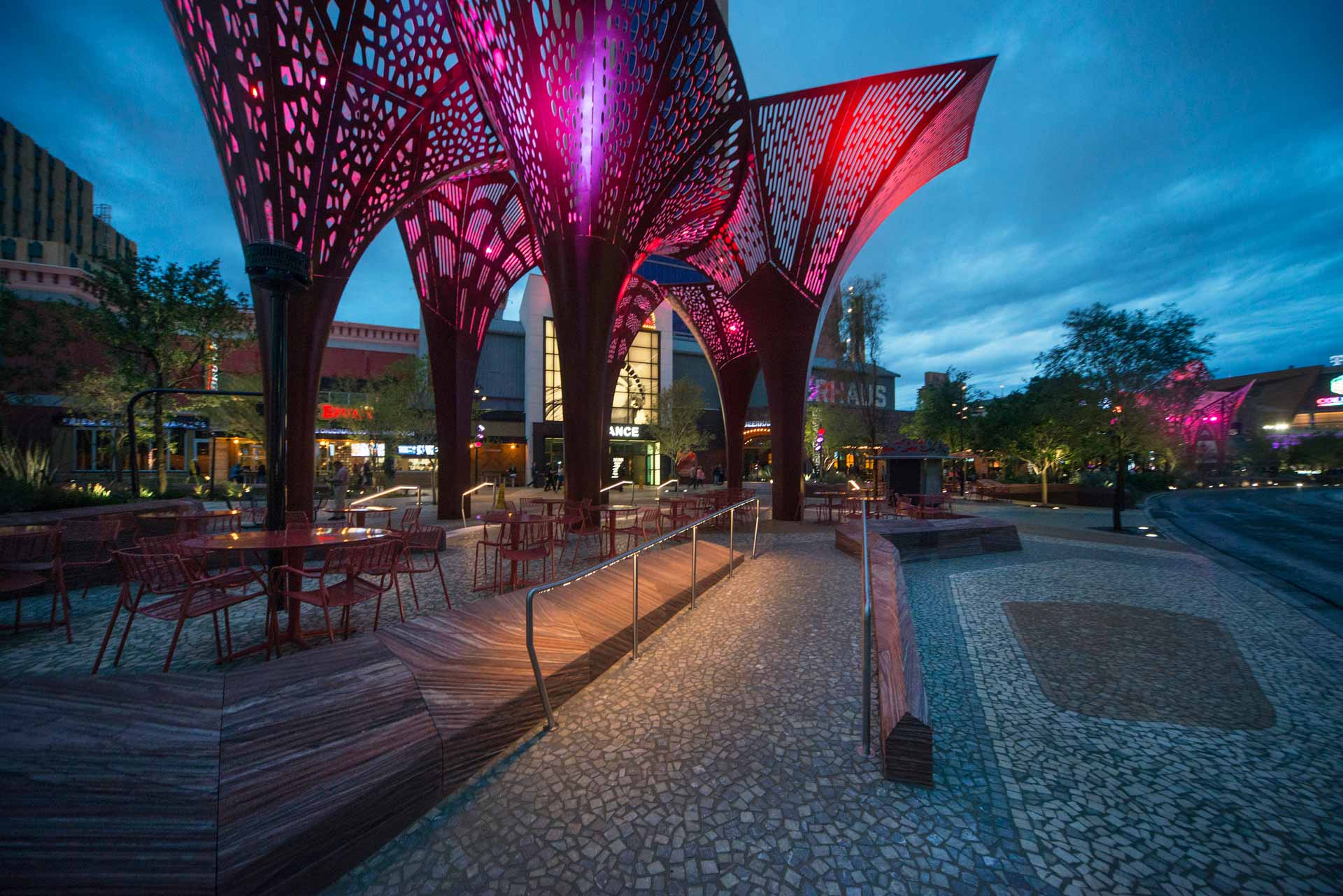

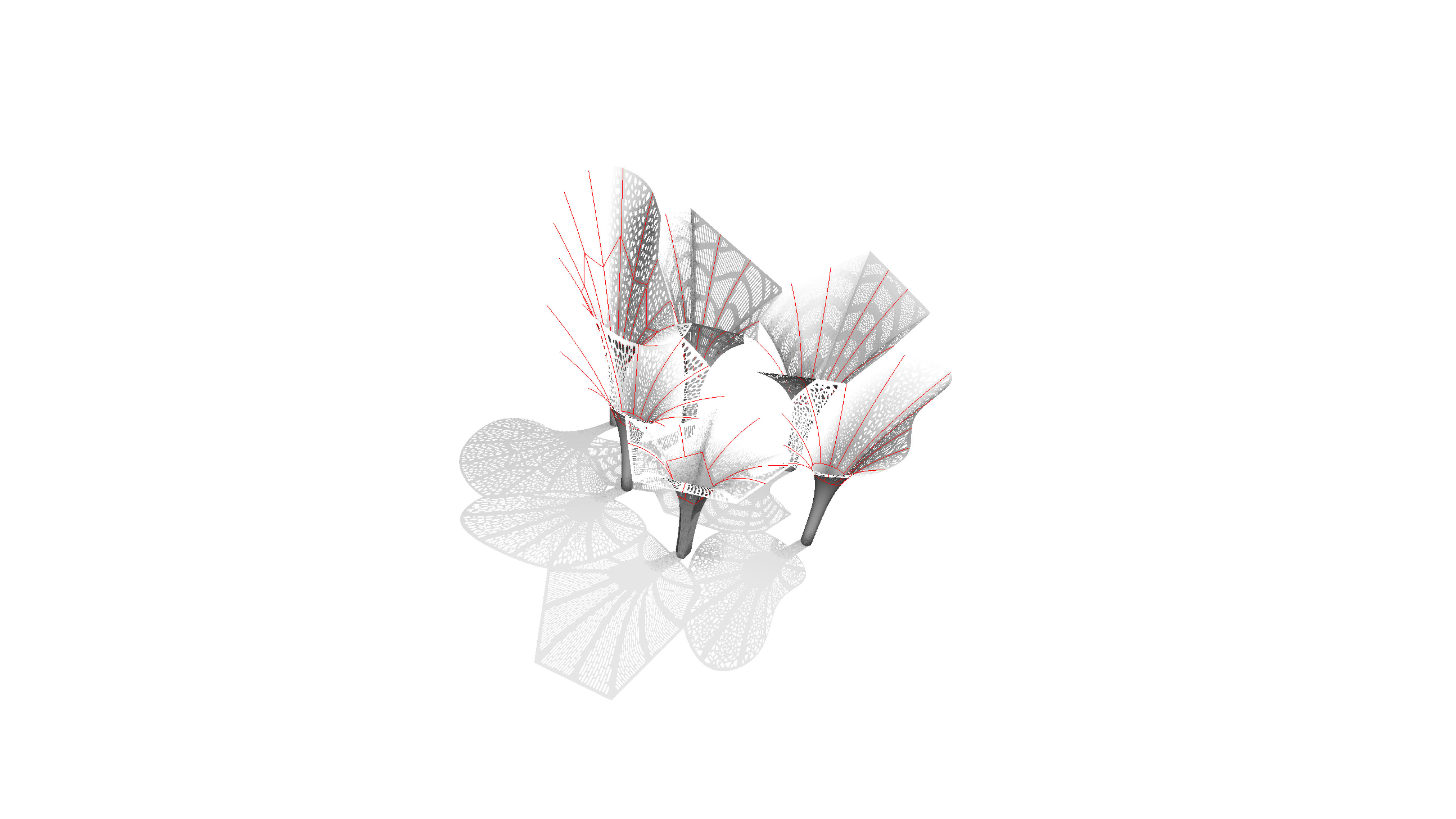

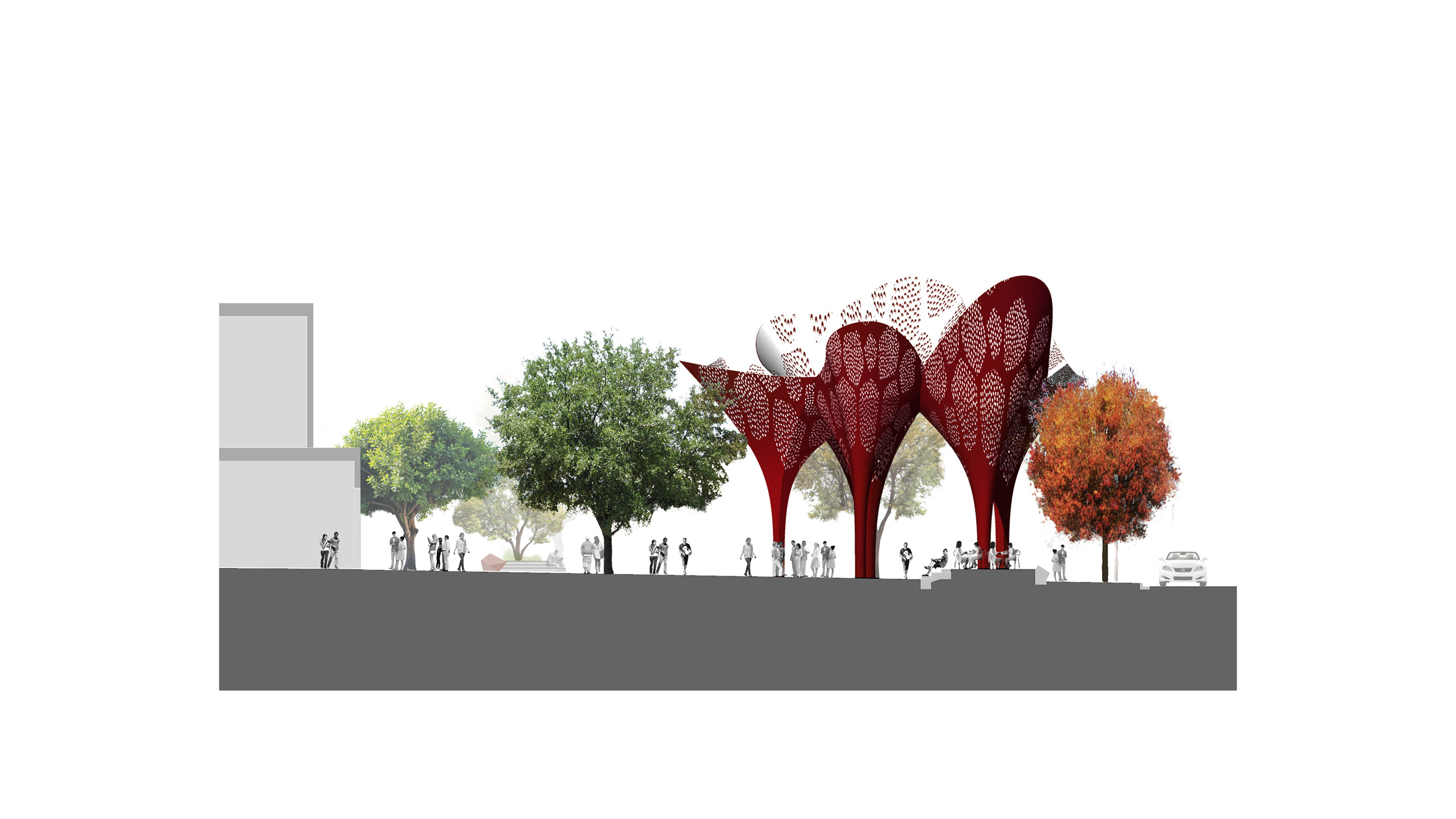

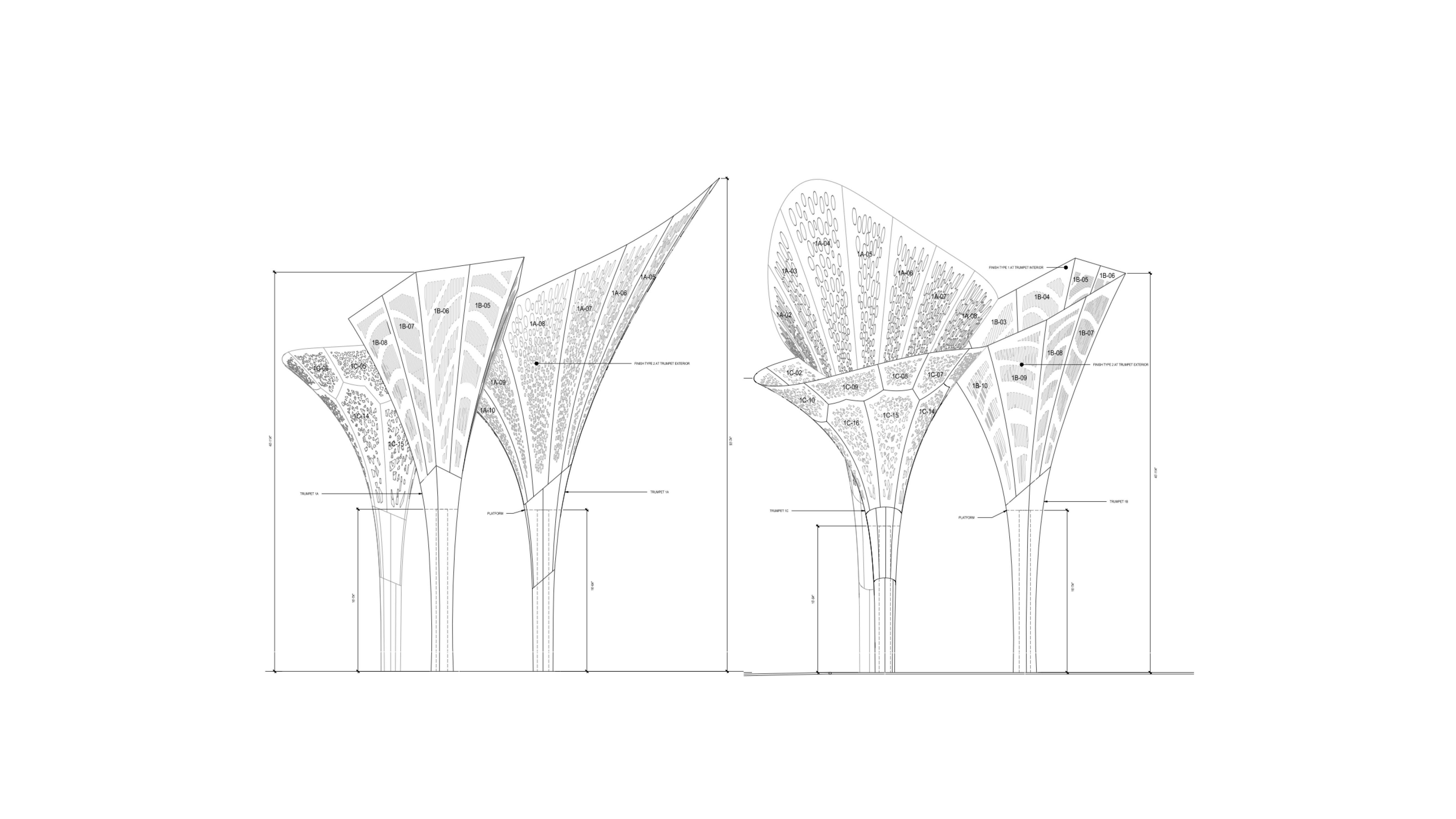

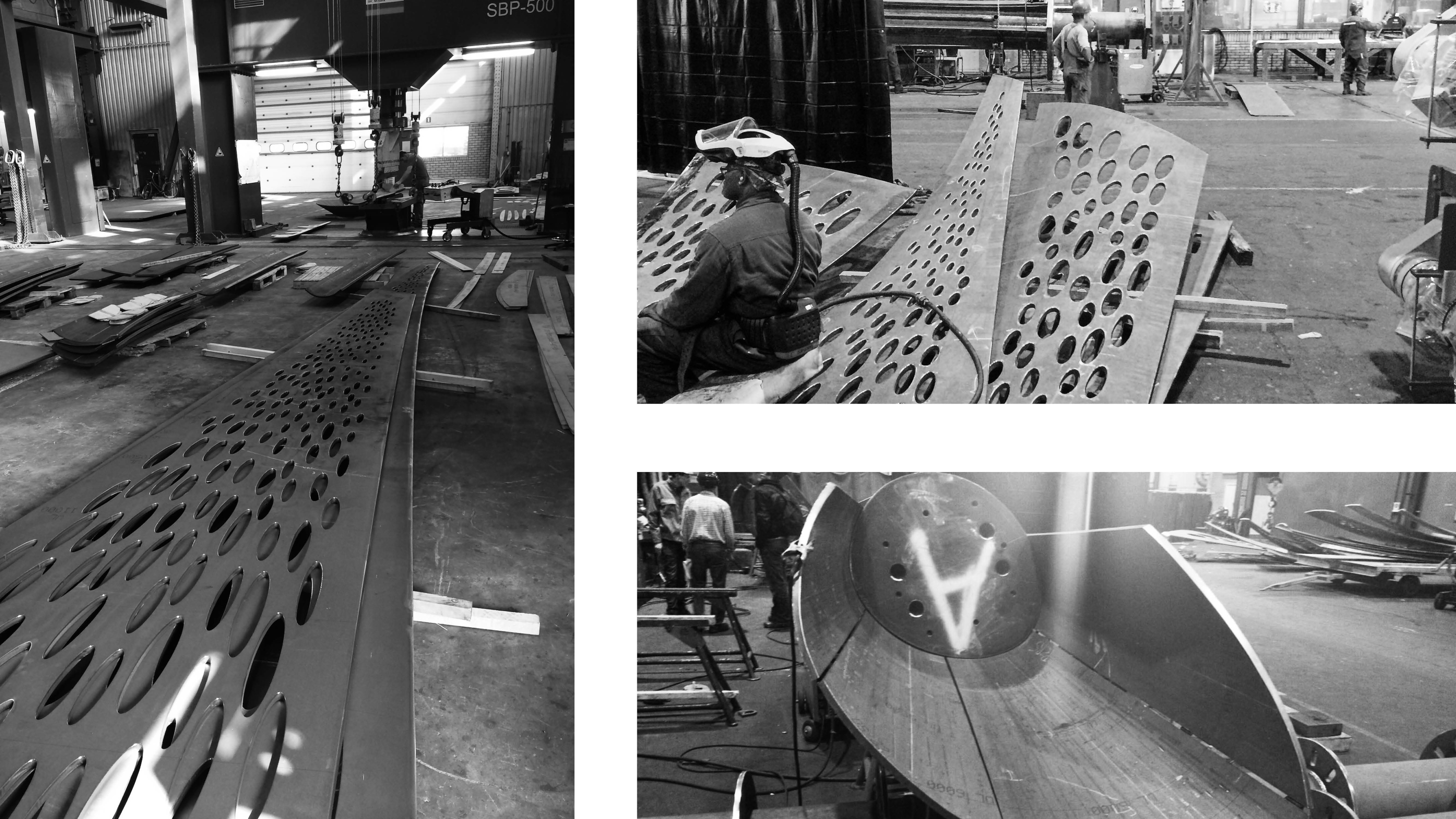

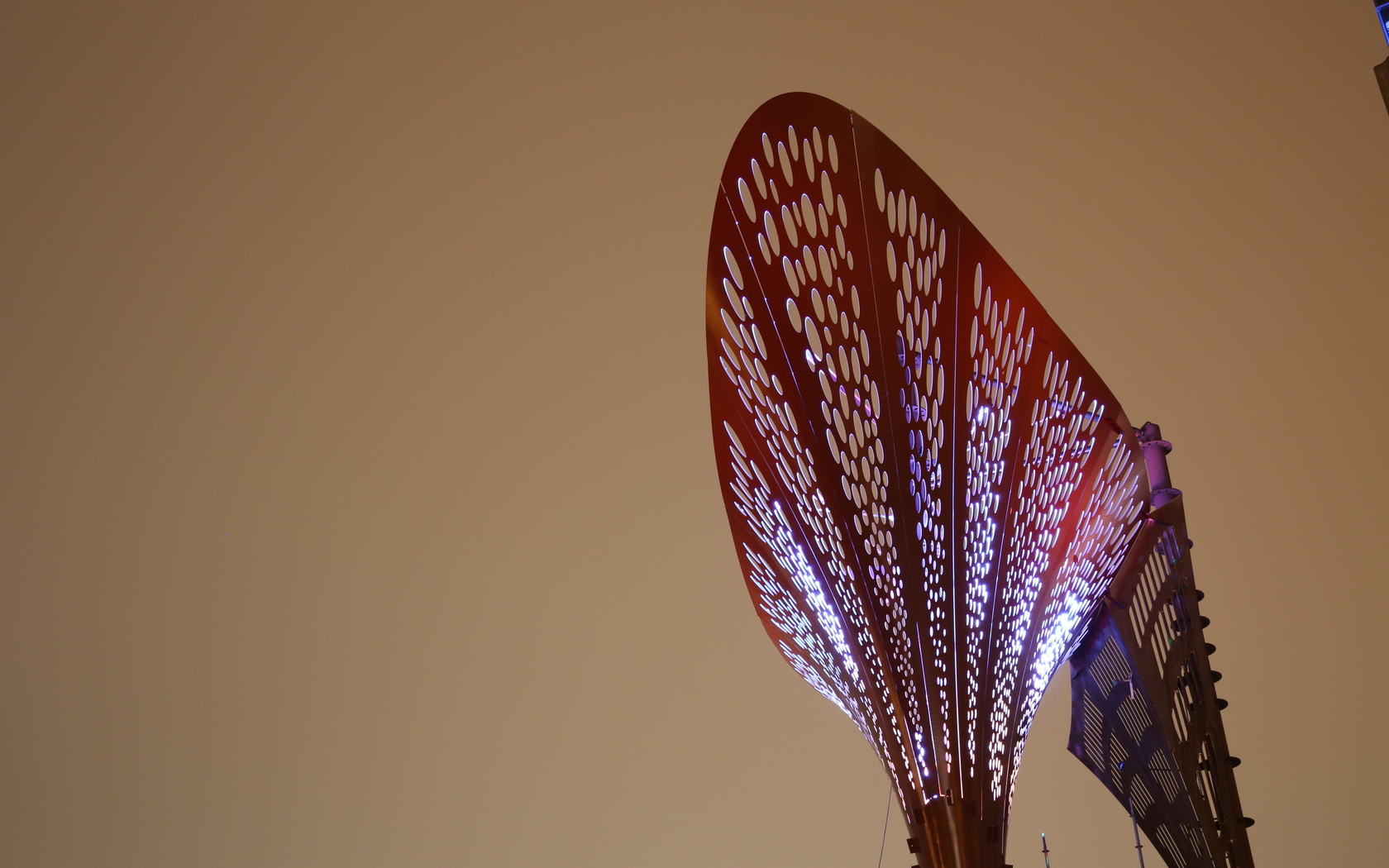

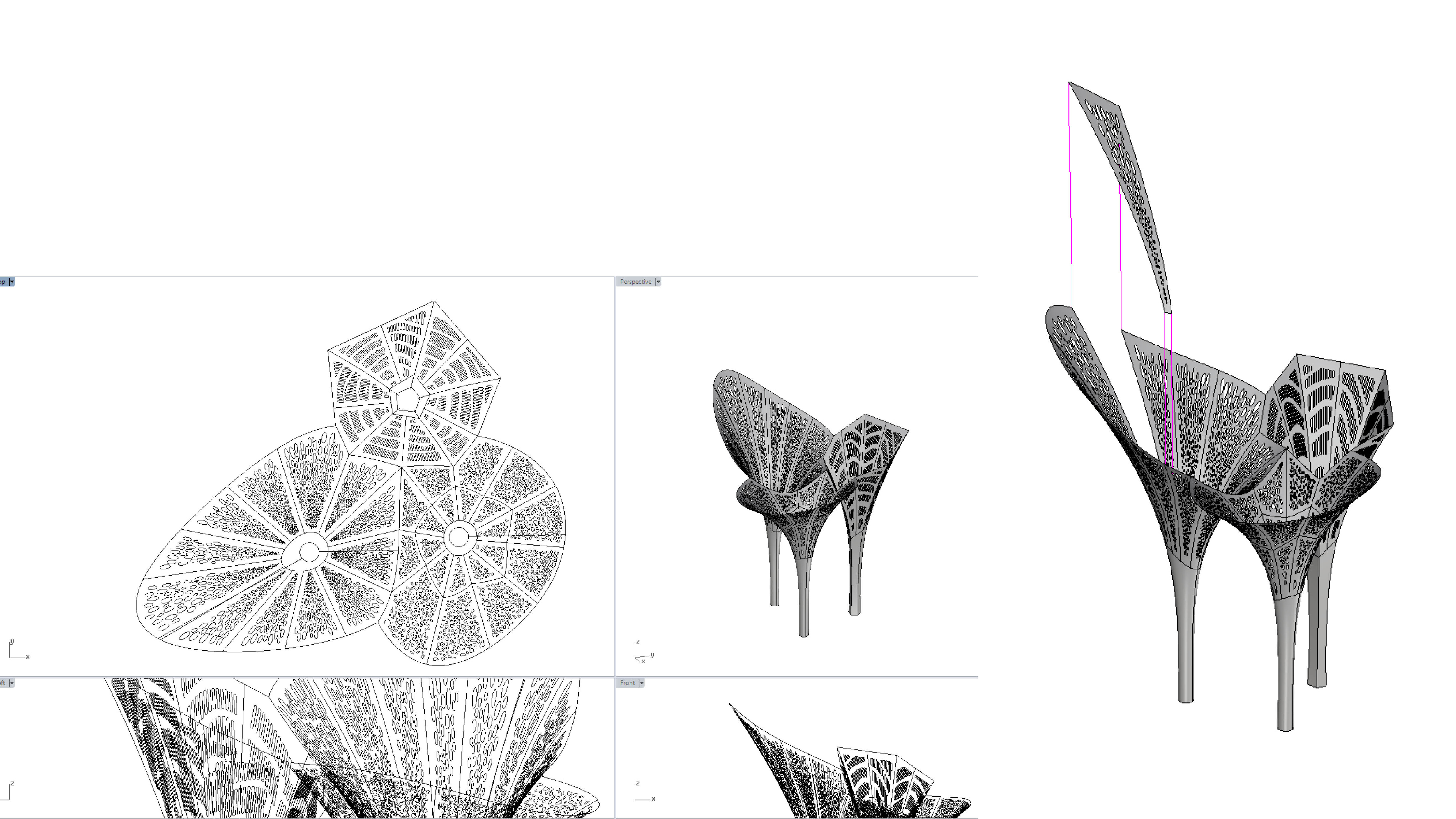

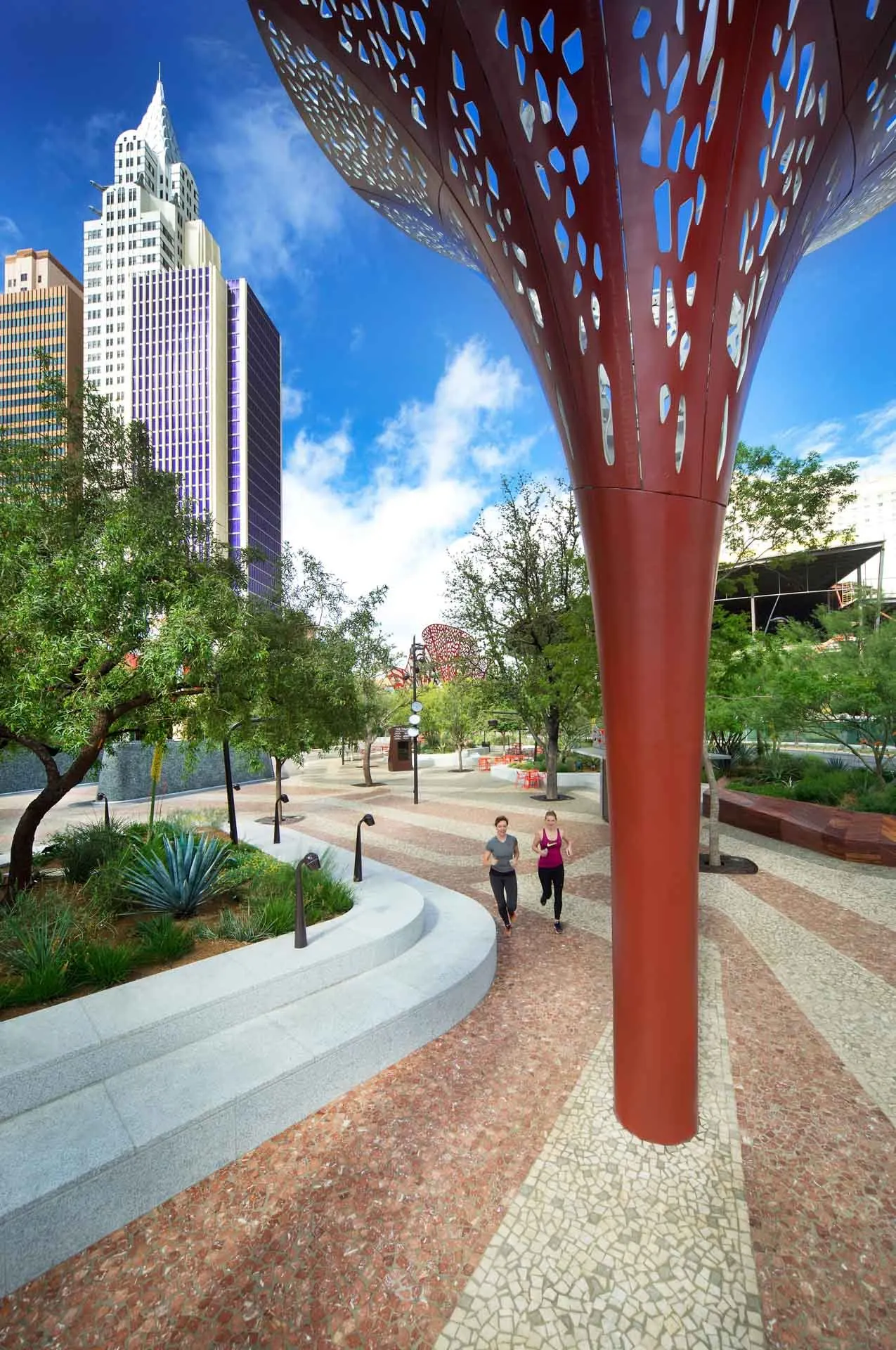

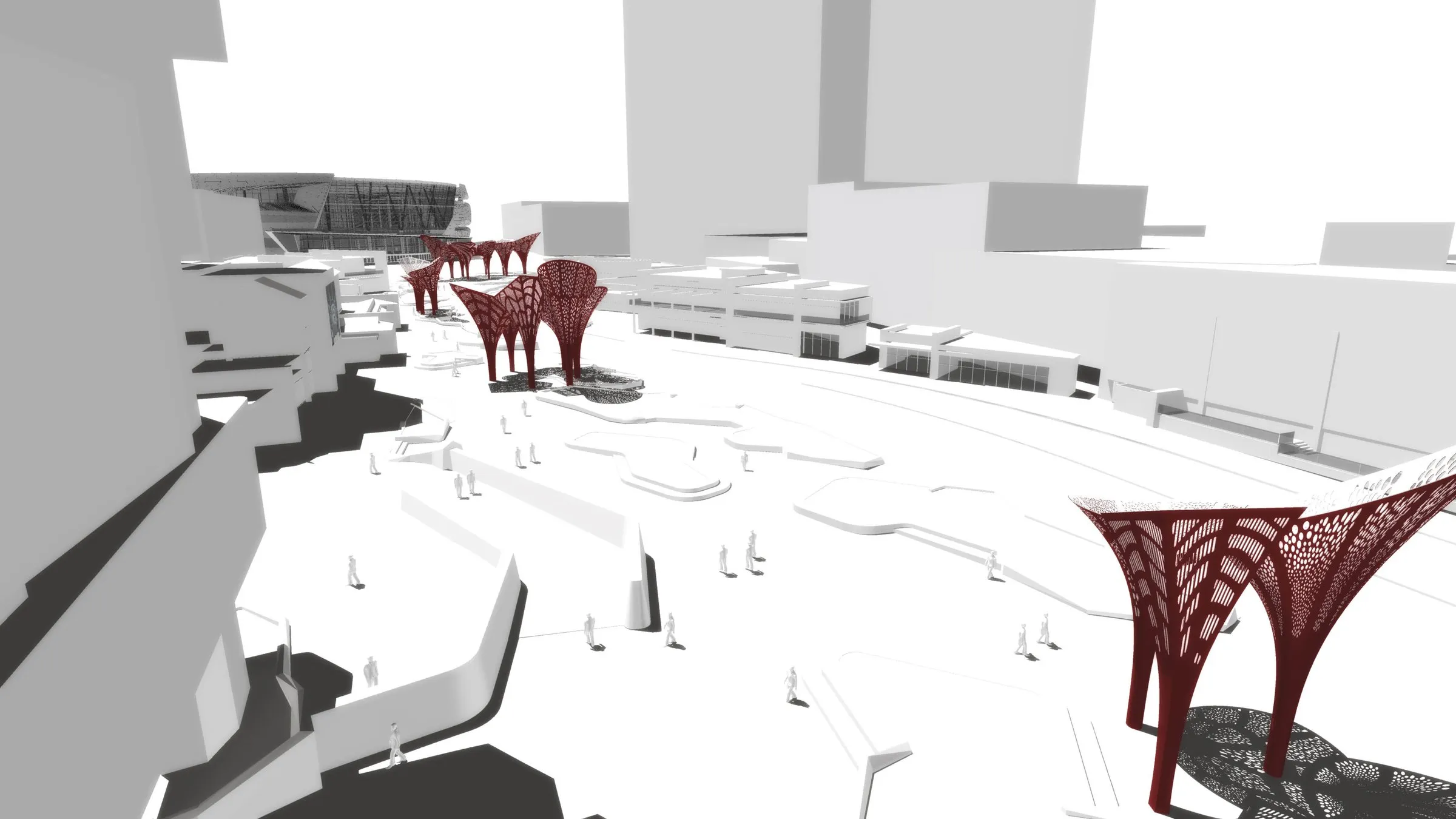

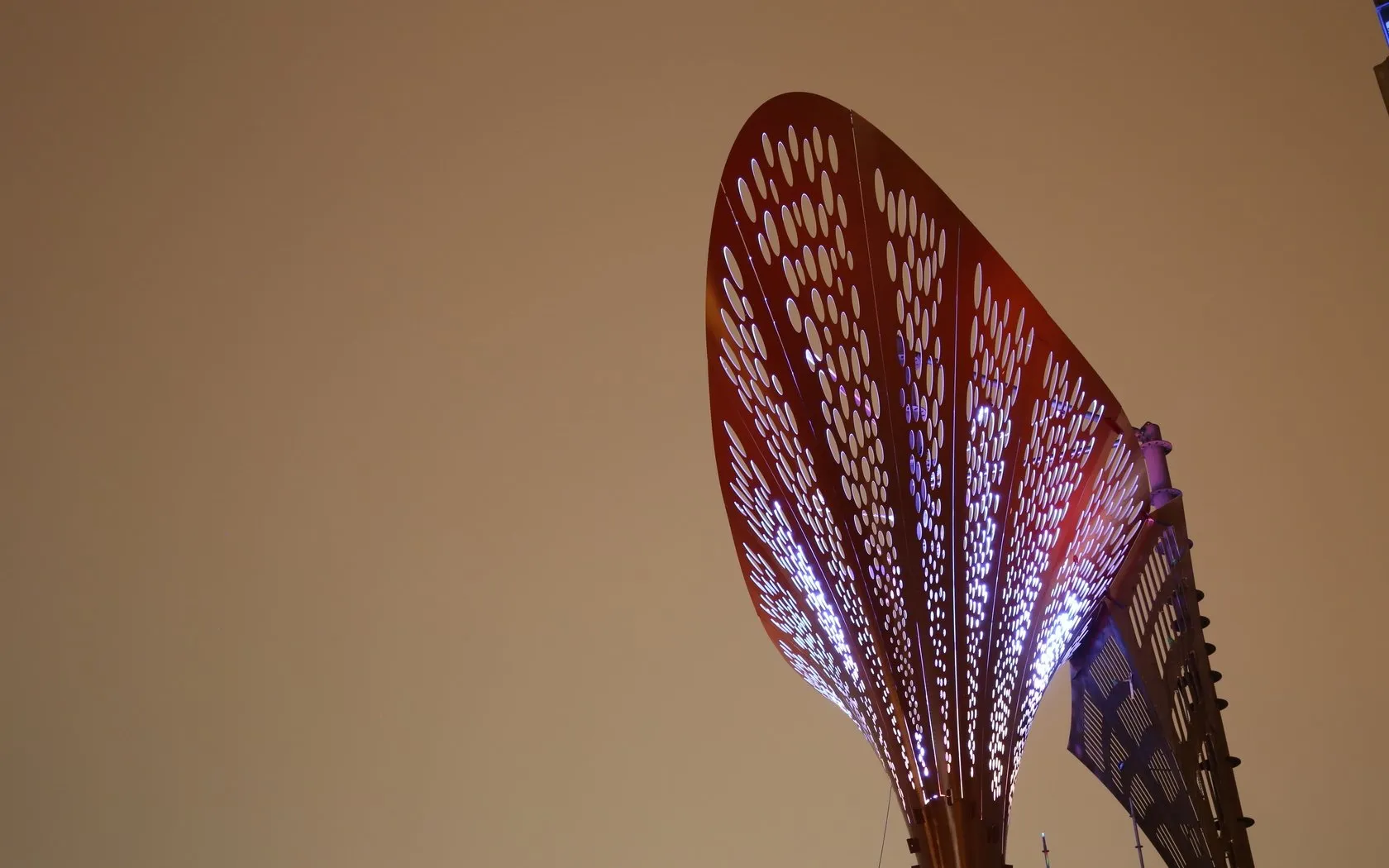

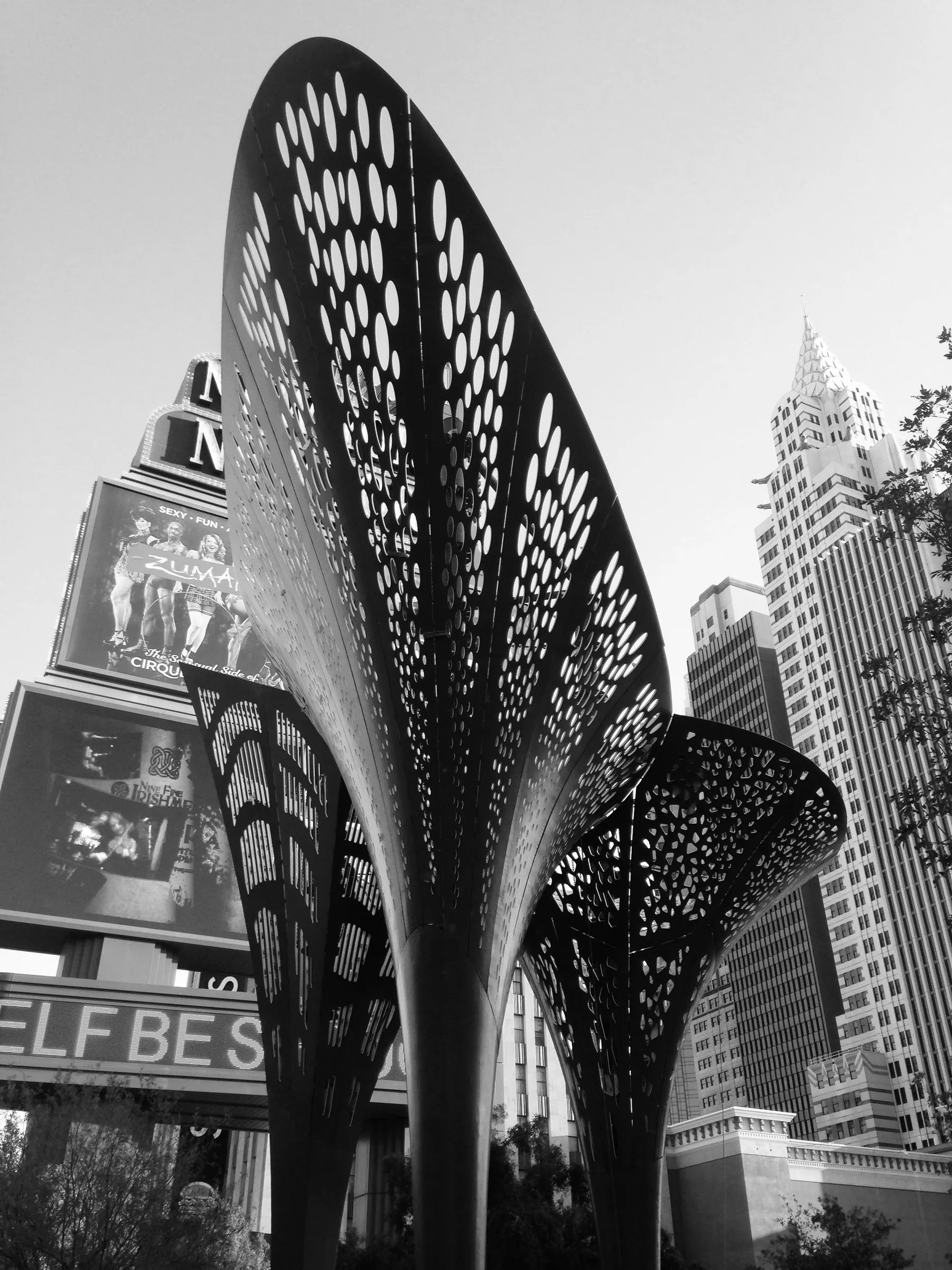

Drawings develop the geometry in plan, elevation, and unrolled panels. In the shop the plates are cut and welded into curved shells. Installed in an open plaza among hotel towers and painted red, the structures throw a dense field of dappled shadow onto the paving. At night they are lit from within. Shade and light are held in the same perforated surface.

material
perforated steel plate, painted
dimensions
approx. 30 ft high
process
modeled, detailed, cut, welded, installed
with
while at melk.
vegas shade — plate 02
02
vegas shade — plate 03
03
vegas shade — plate 04
04
vegas shade — plate 05
05
vegas shade — plate 06
06

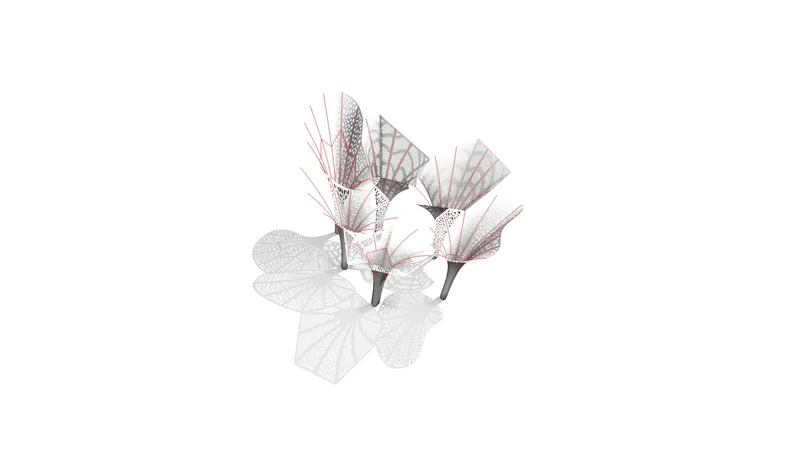

vegas shade — plate 07
