nimbus

8 plates
nimbus — plate 01

description

A shade canopy is modeled as a folded plane on a spine of ribs, bent twice along its length. The plane is broken into triangular panels, each perforated with small openings, and carried on clusters of thin white columns. Construction drawings unfold the surface into numbered flat panels.

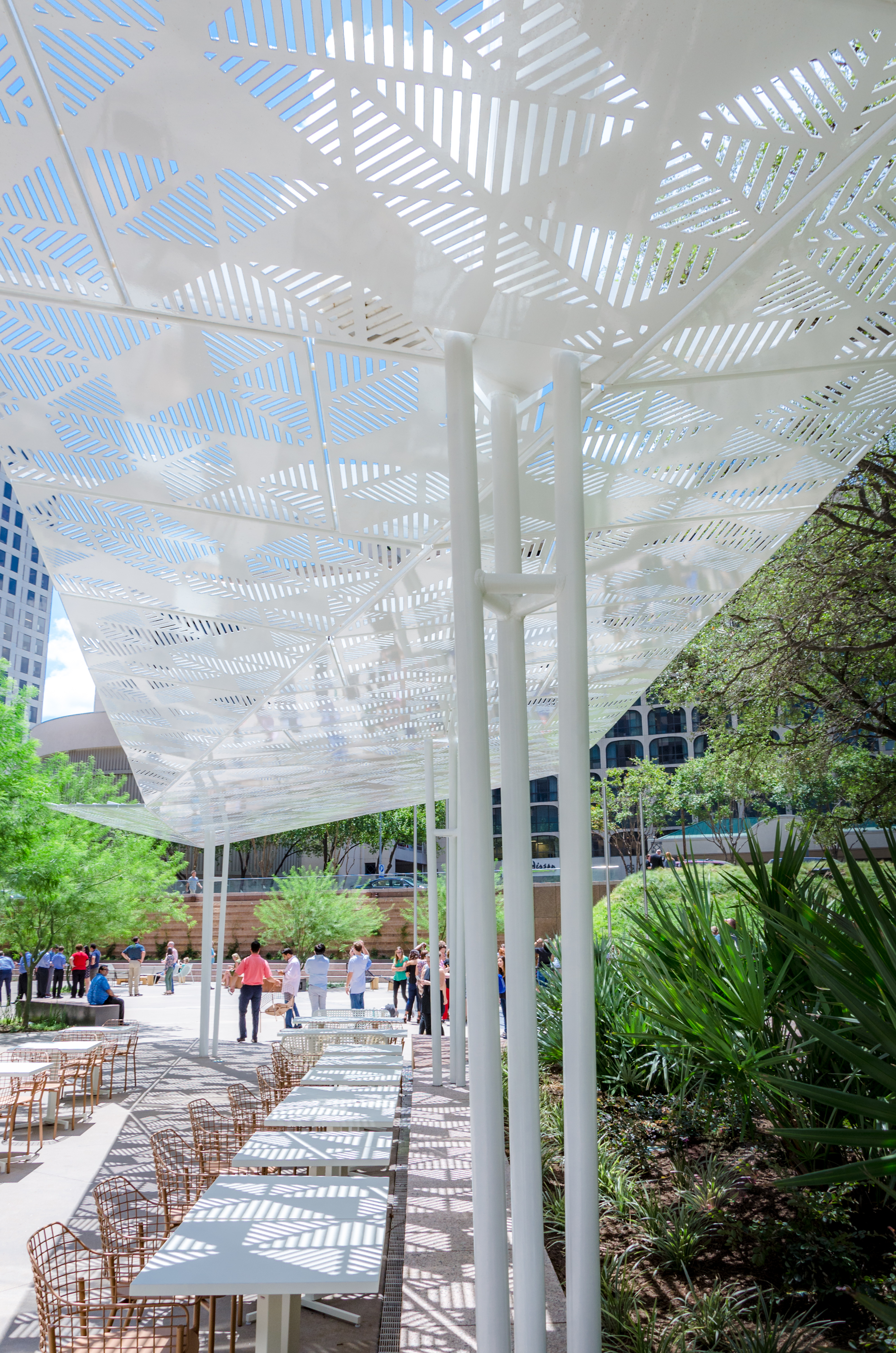

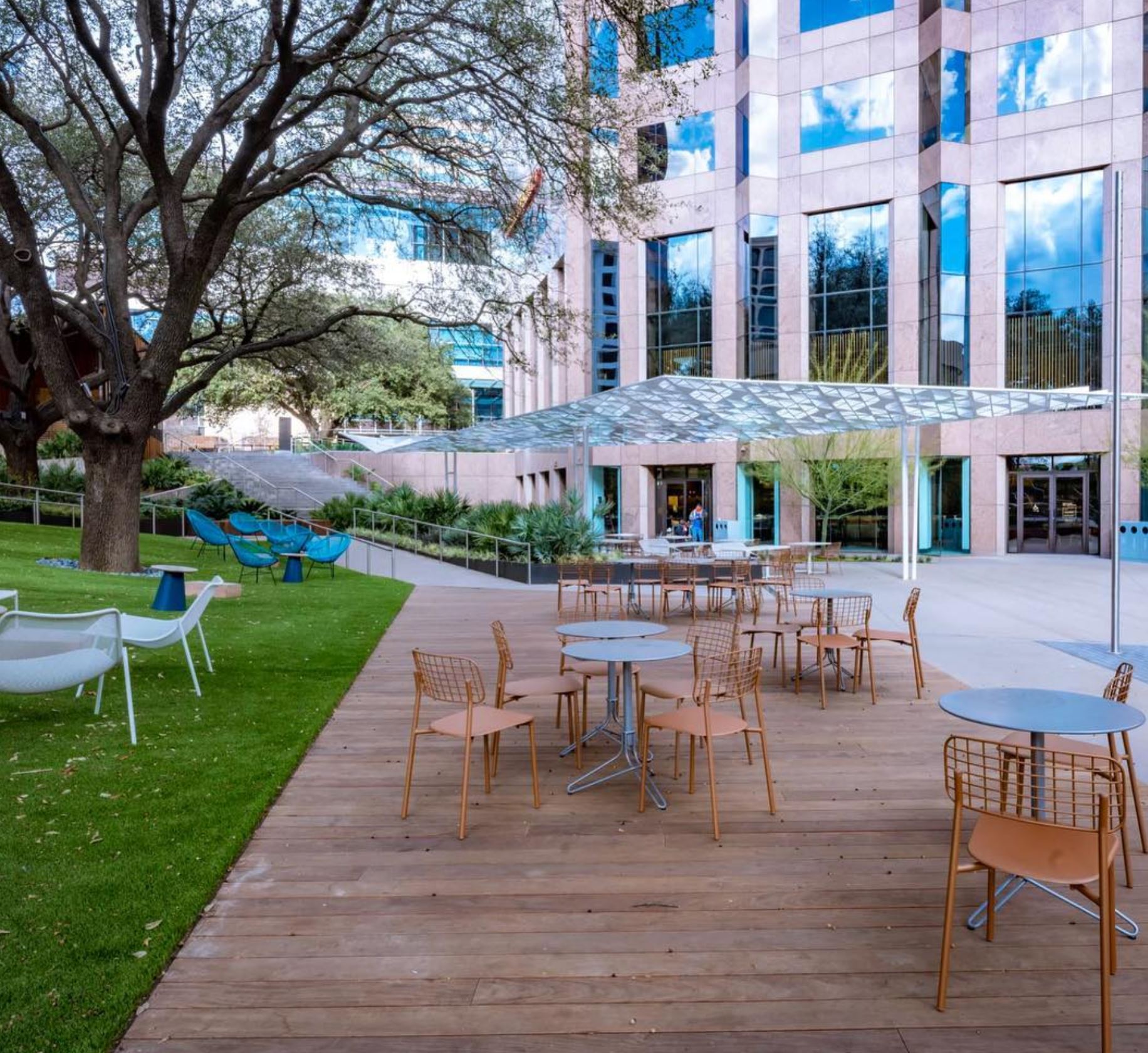

Built, the canopy hangs over a plaza between office towers and large oaks. From below, the perforations turn the ceiling into a gradient of light, and the fold lines remain visible as creases. In direct sun the pattern moves across the deck and tables beneath. The structure looks solid from the street and nearly disappears from underneath.

material
perforated metal panels, steel frame and columns
dimensions
approx. 14 ft high
process
modeled, rendered, detailed, fabricated, installed
with
while at dwg.
