ice tray

4 plates
ice tray — plate 01

description

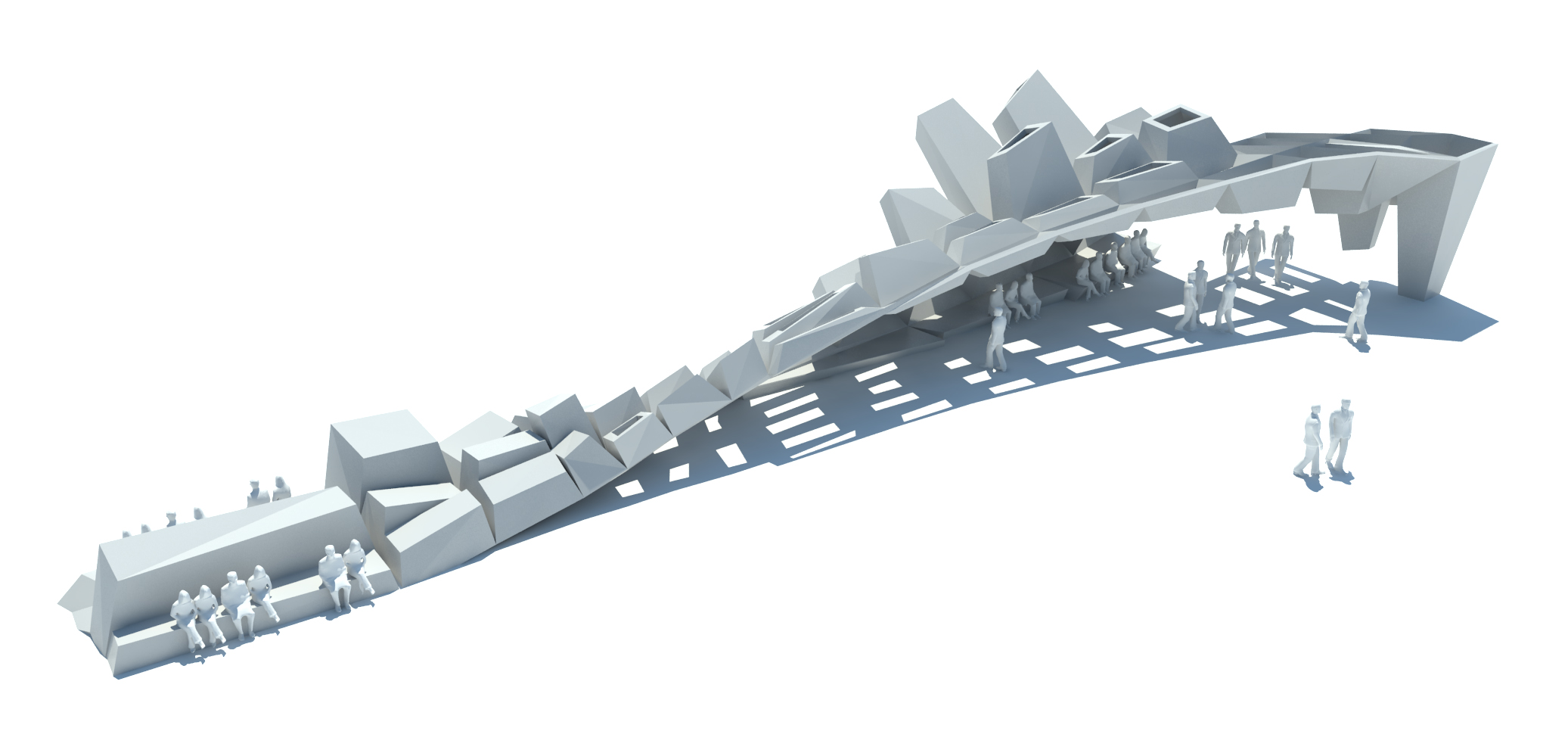

A long canopy is assembled from faceted cells that rise and fall along its length. Each cell is a tapered box, open at the top, and the boxes sit at different heights so the roofline breaks into a stepped ridge. The model is rendered in plain white, with scale figures seated and walking beneath.

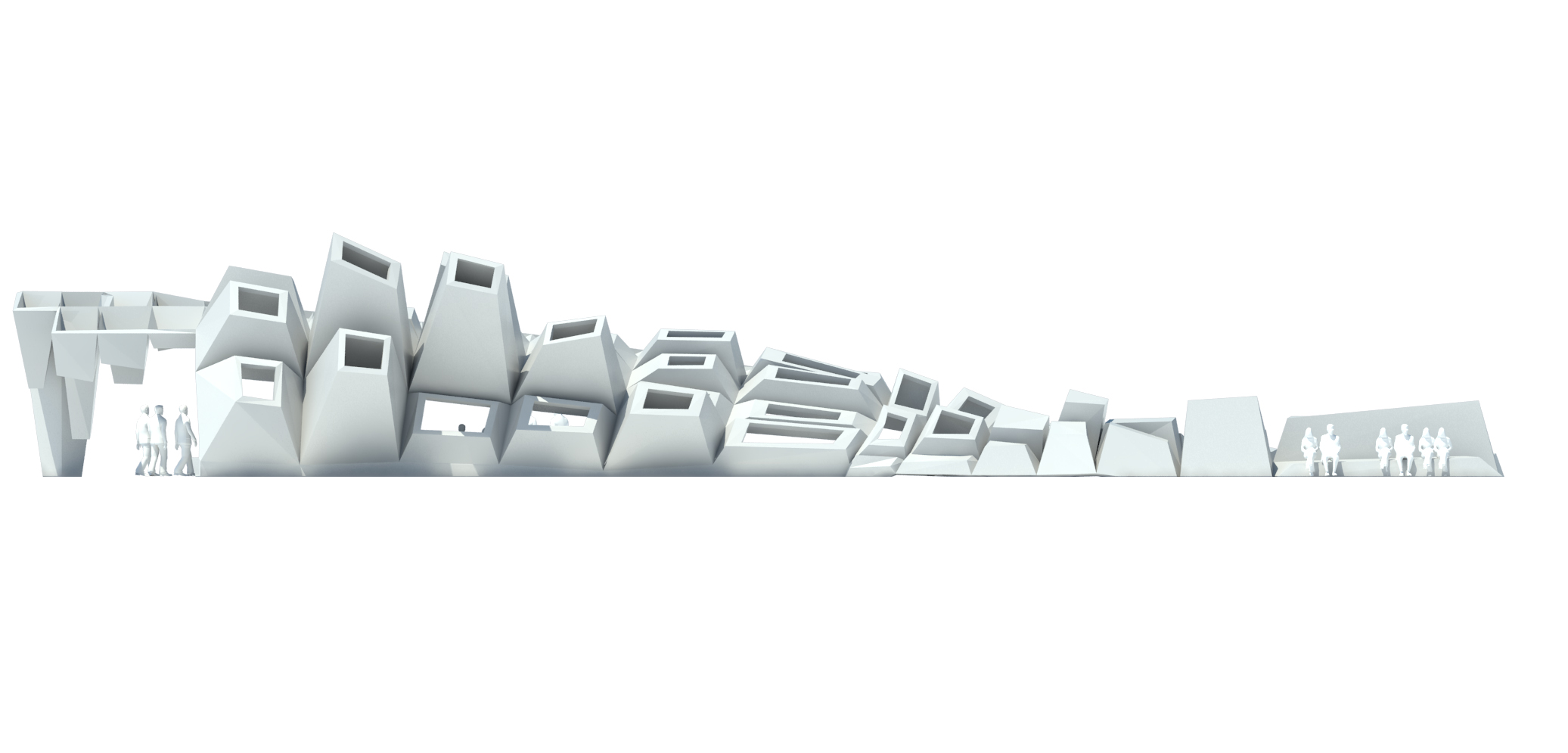

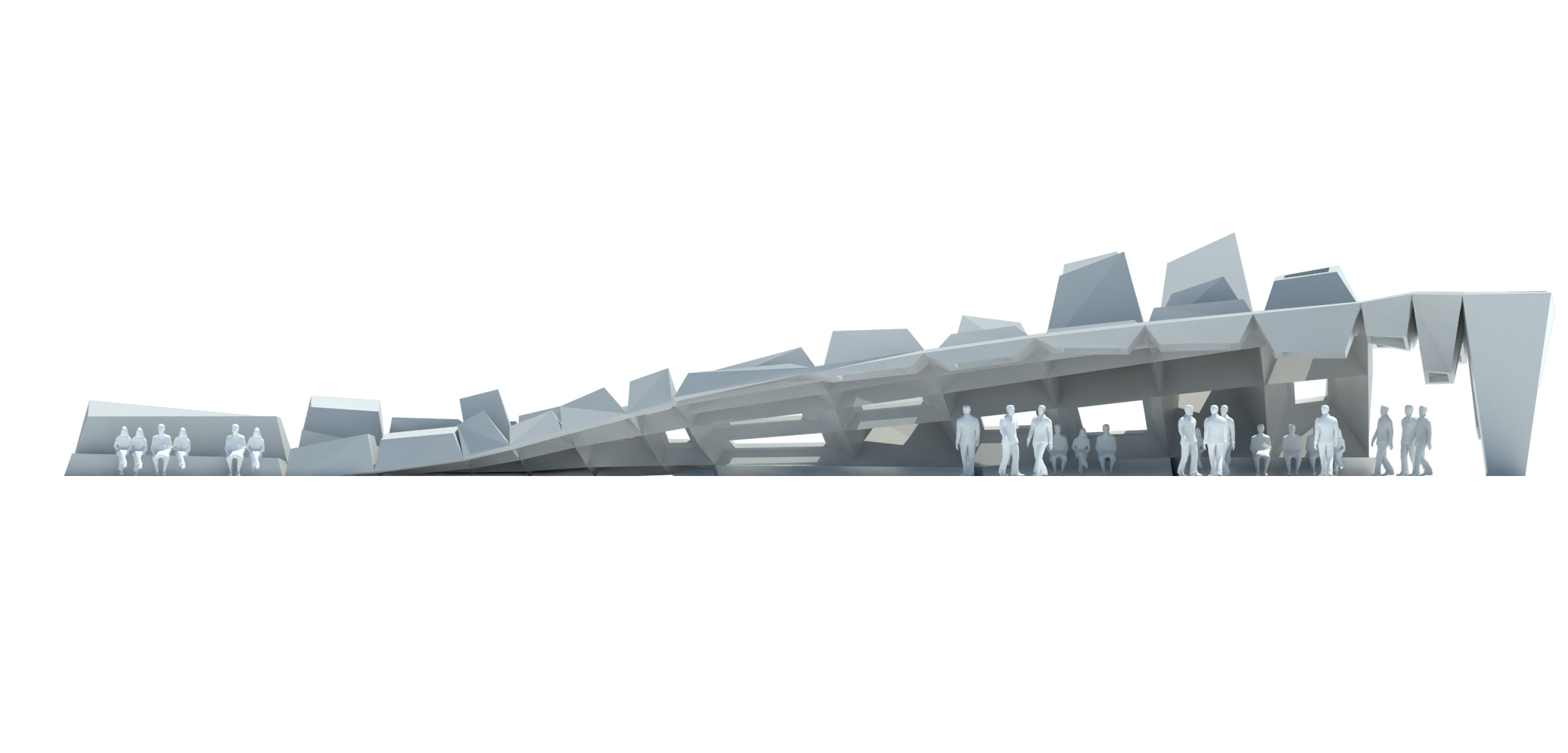

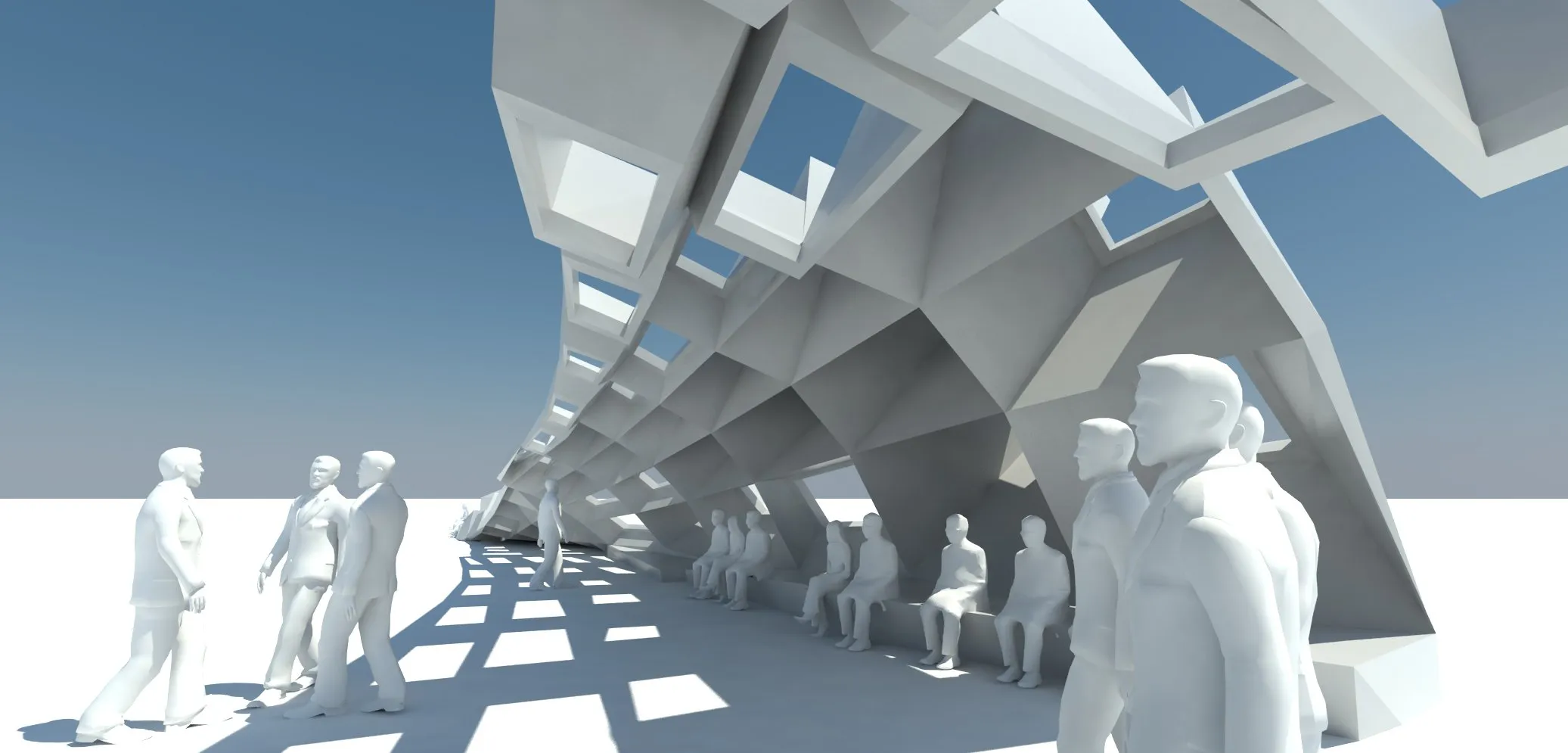

In elevation the structure reads as a mountain profile. From below it resolves into a grid, and sunlight passing through the open cells prints that grid across the ground. The shadow is more regular than the roof that casts it.

material
digital model, rendered
process
modeled, rendered
ice tray — plate 02
02
ice tray — plate 03
03
ice tray — plate 04
04
