dougherty — plate 01

description

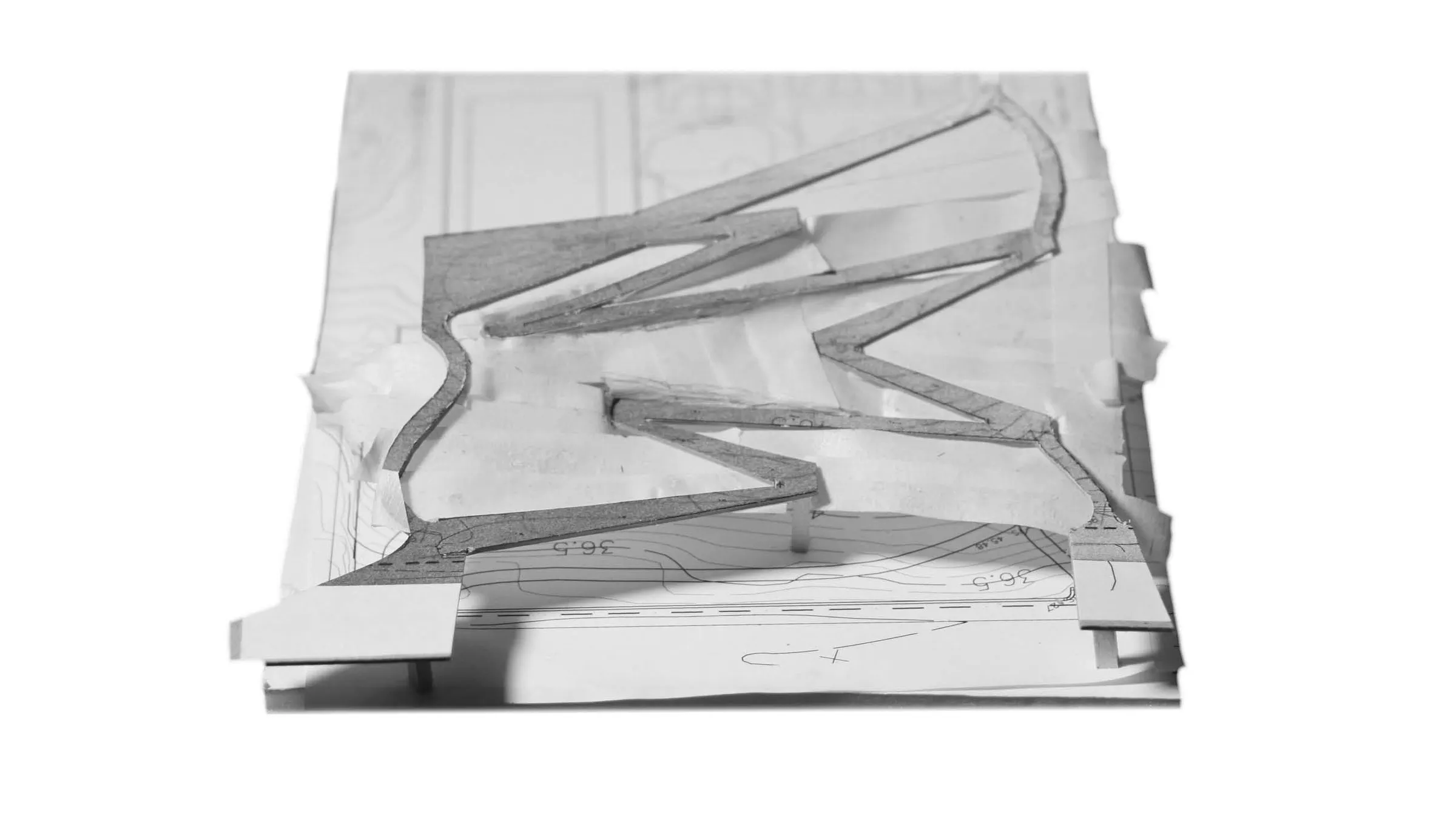

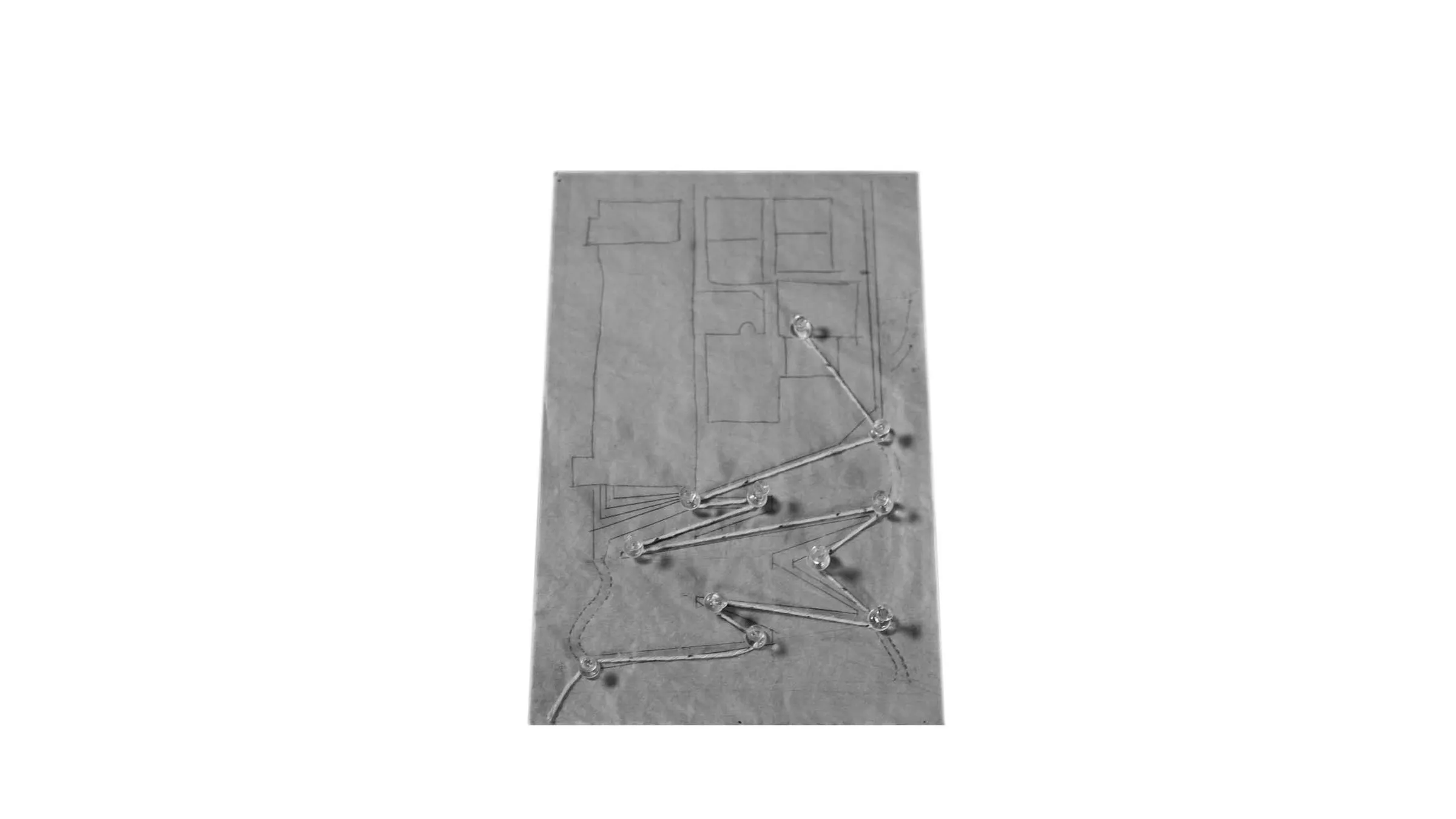

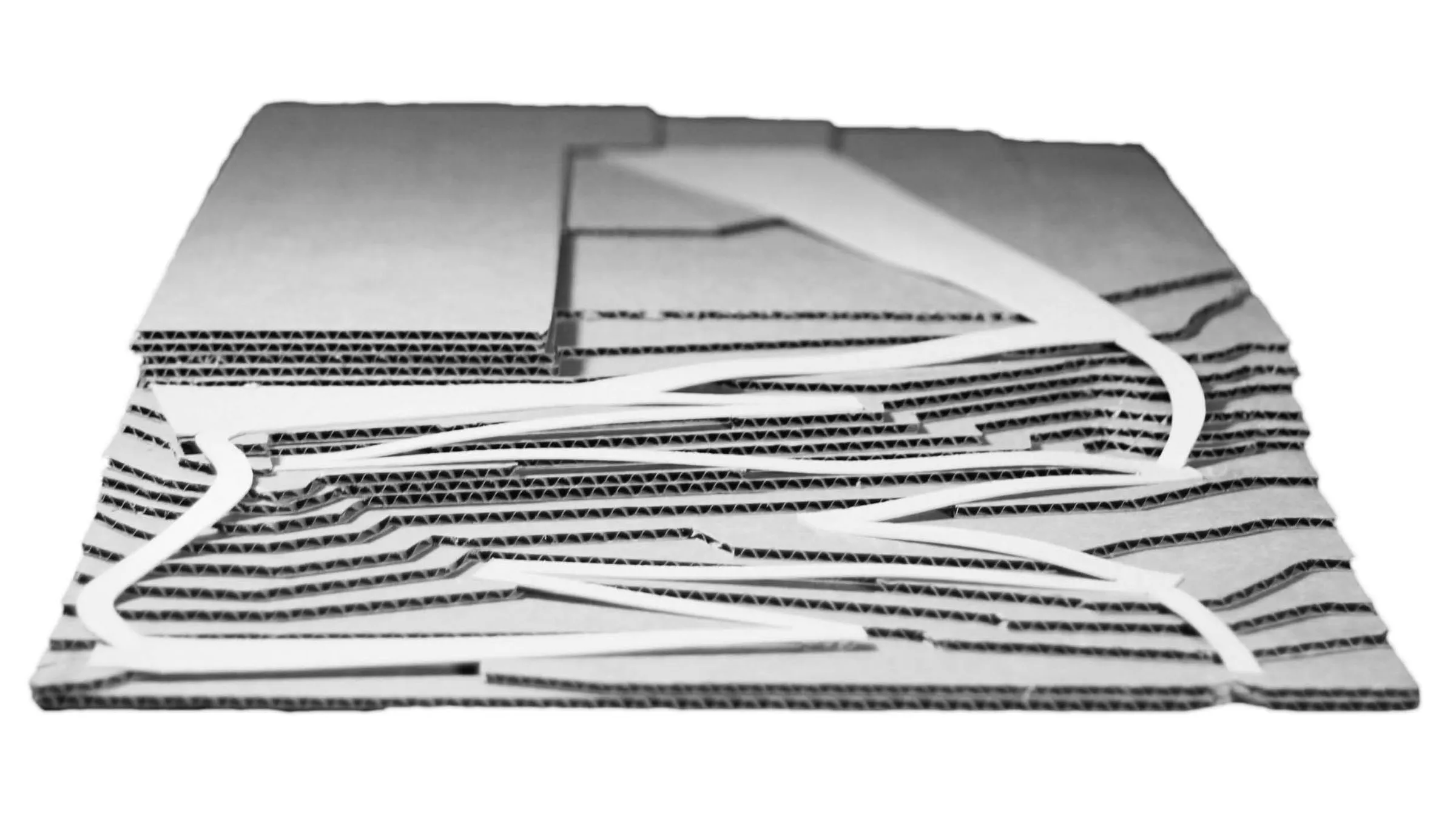

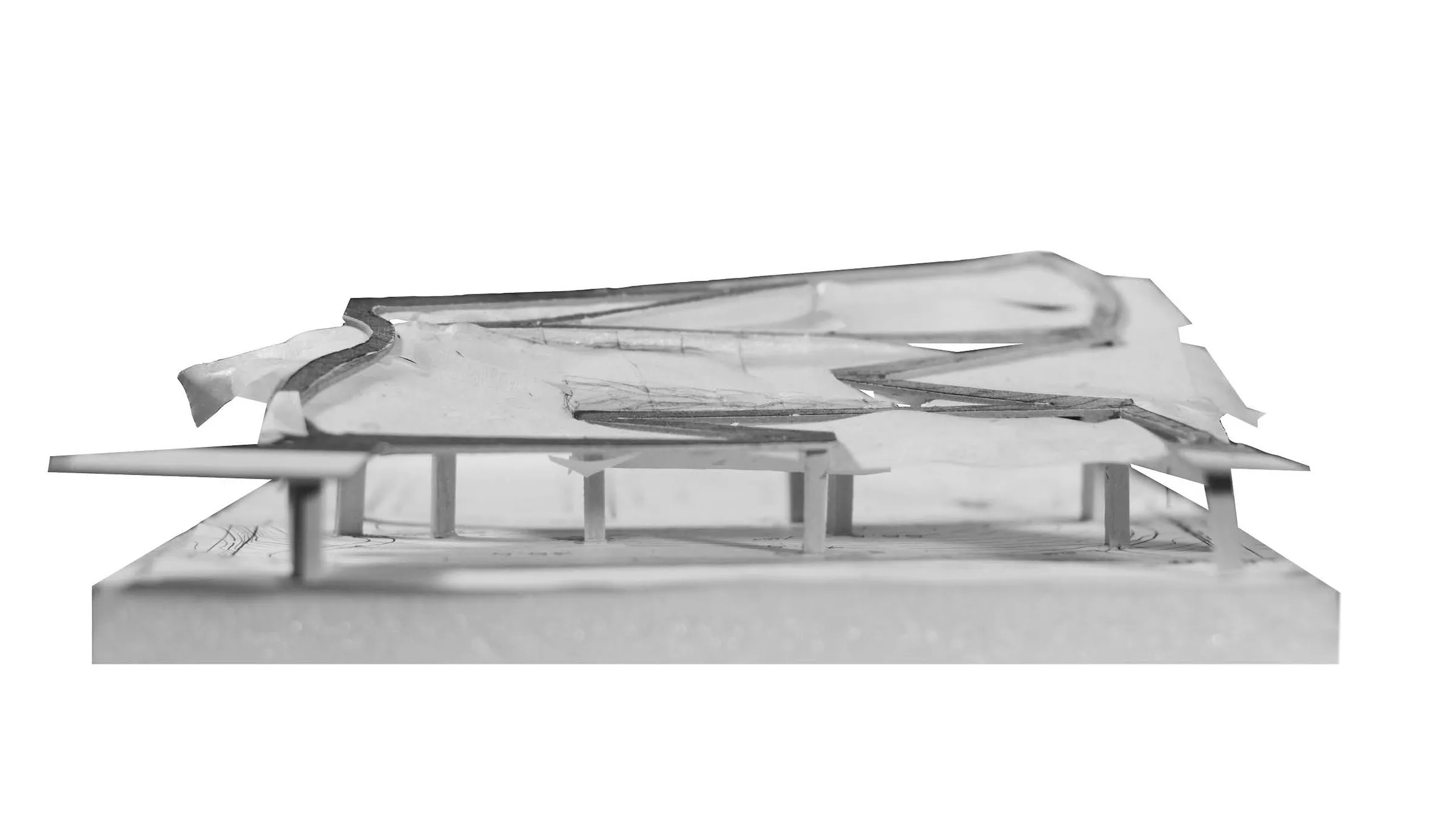

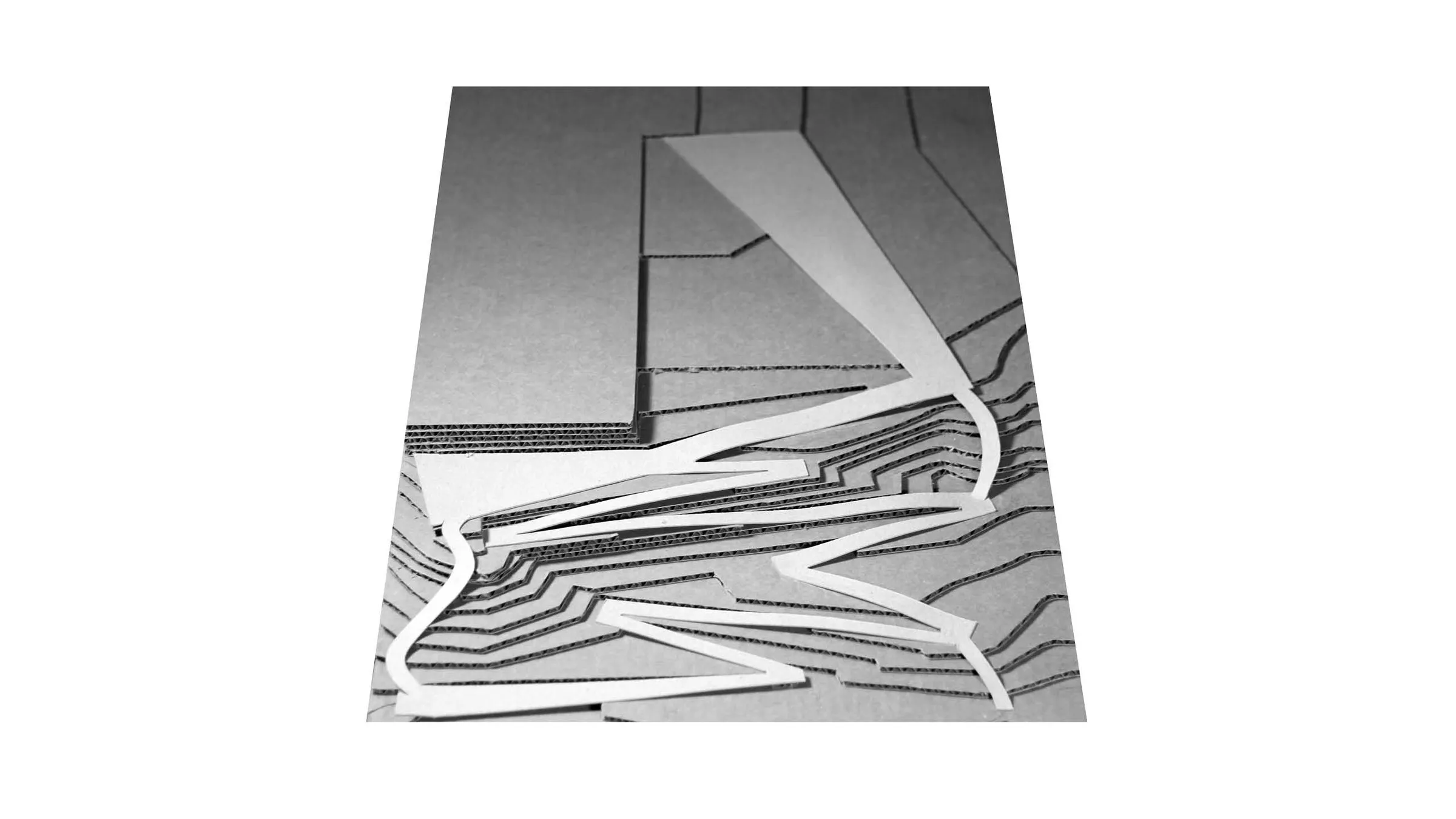

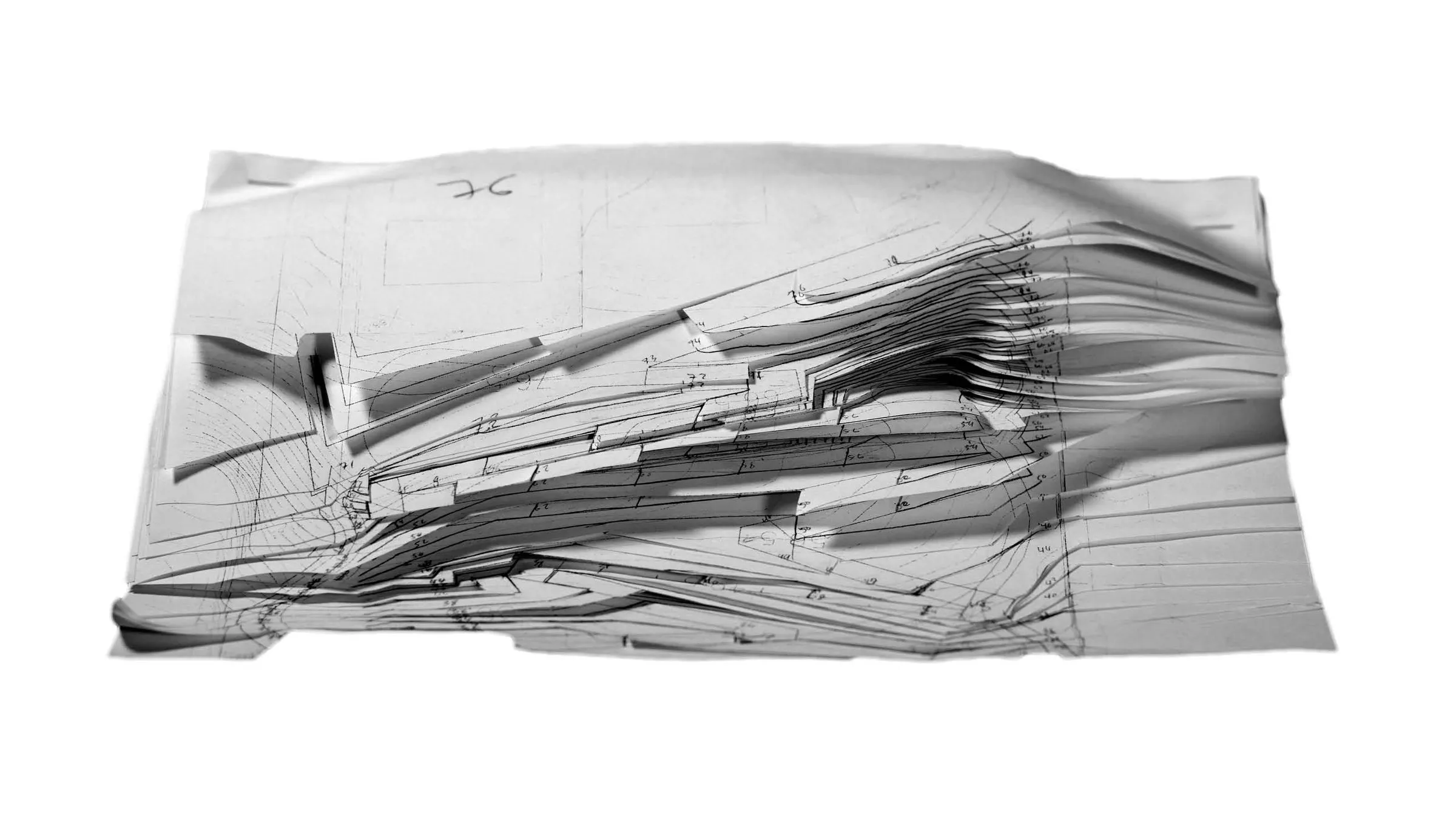

A hillside site is worked out through a series of study models. Early versions layer trace-paper drawings and cut paper into loose folds. Later ones stack corrugated board into terraced contours, with a white ribbon of path cutting back and forth across the slope.

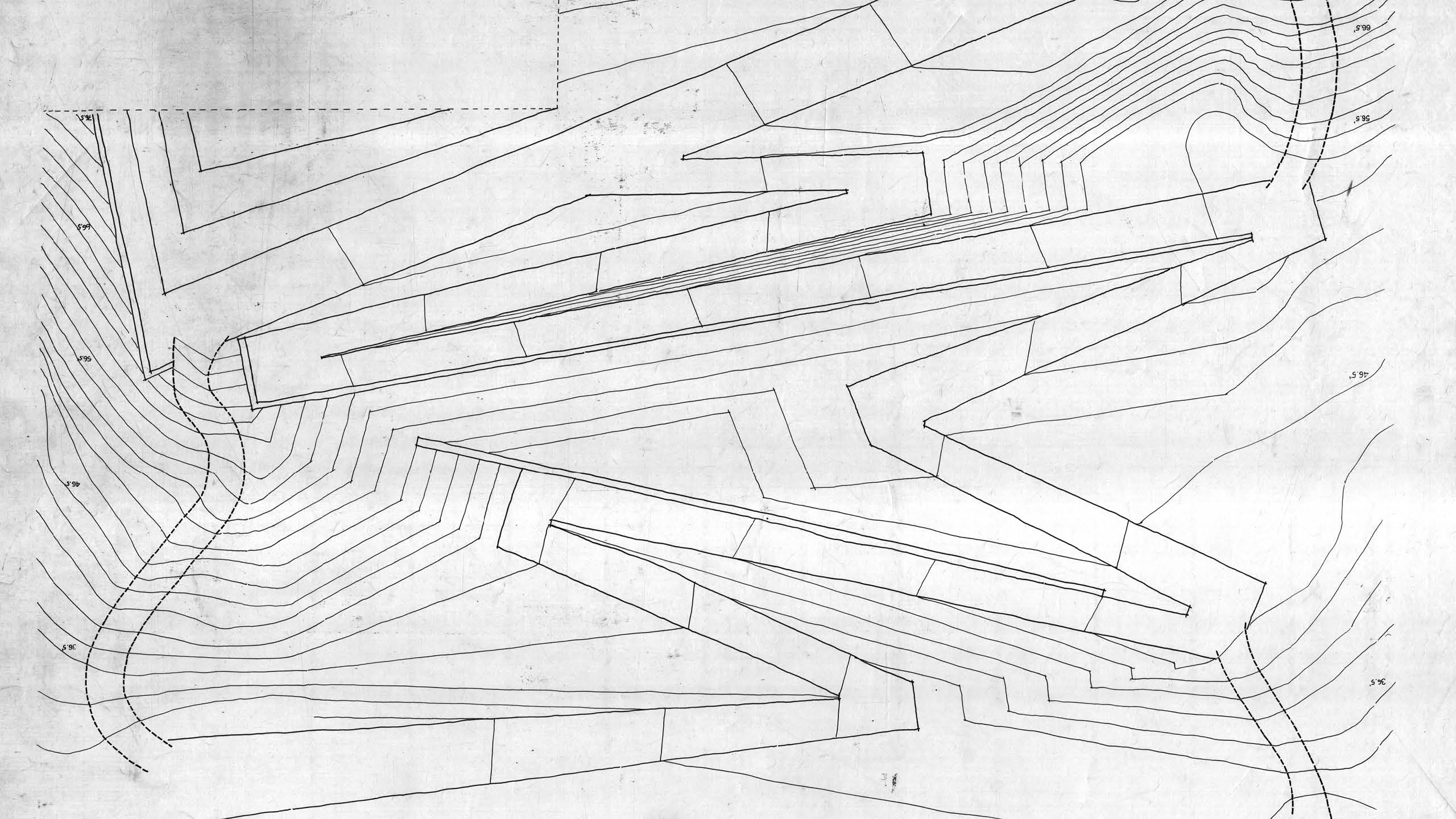

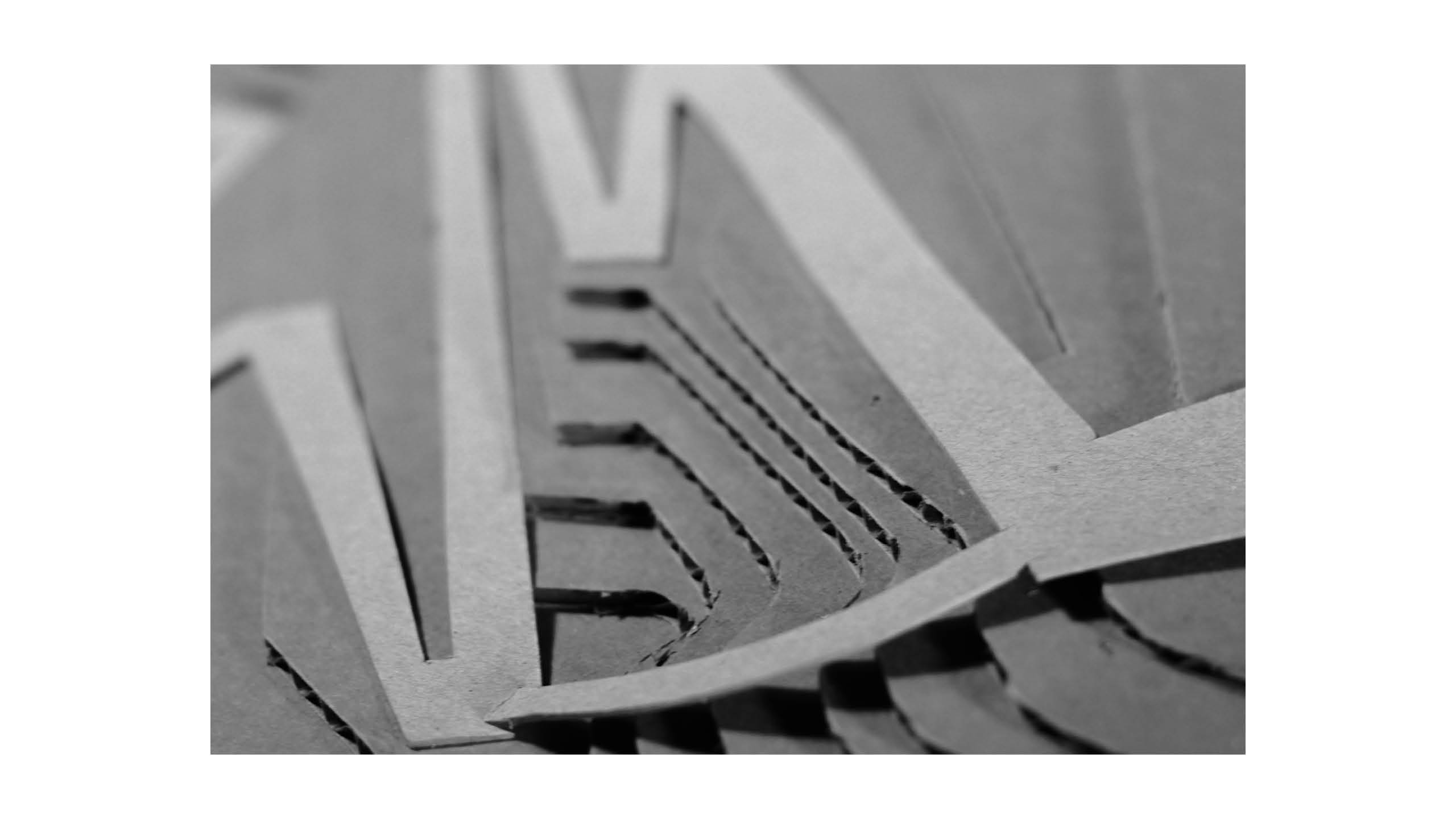

The switchback is the constant. It appears as a pencil line on the drawings, a paper strip on the models, and finally as a cut through the contour layers. The corrugated edges of the board remain visible, so each terrace carries its own small grain.

material
corrugated board, chipboard, trace paper
process
drawn, cut, layered, photographed
dougherty — plate 02
02
dougherty — plate 03
03
dougherty — plate 04
04
dougherty — plate 05
05
dougherty — plate 06
06
dougherty — plate 07
07
dougherty — plate 08
08
