chinati — plate 01

description

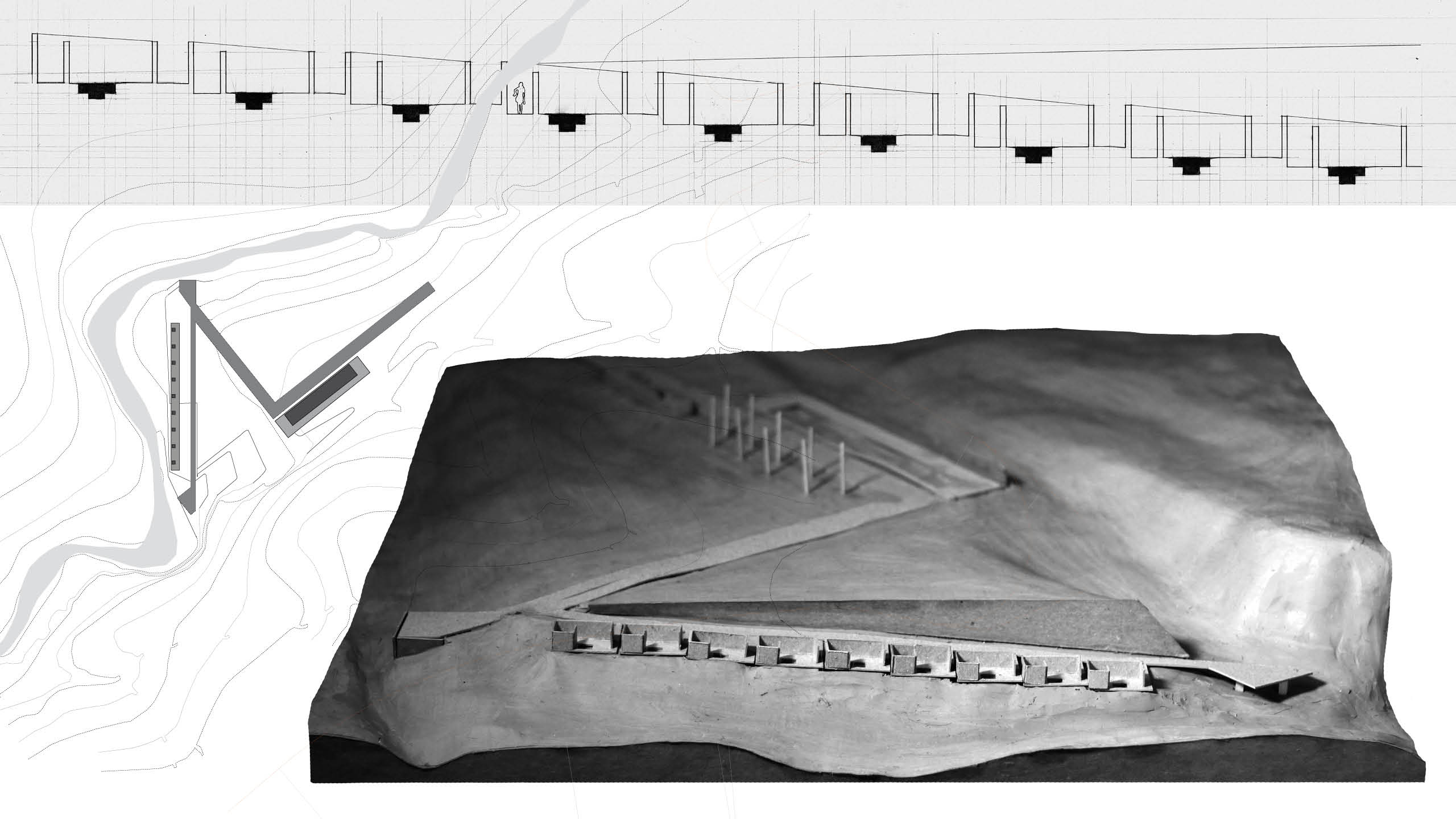

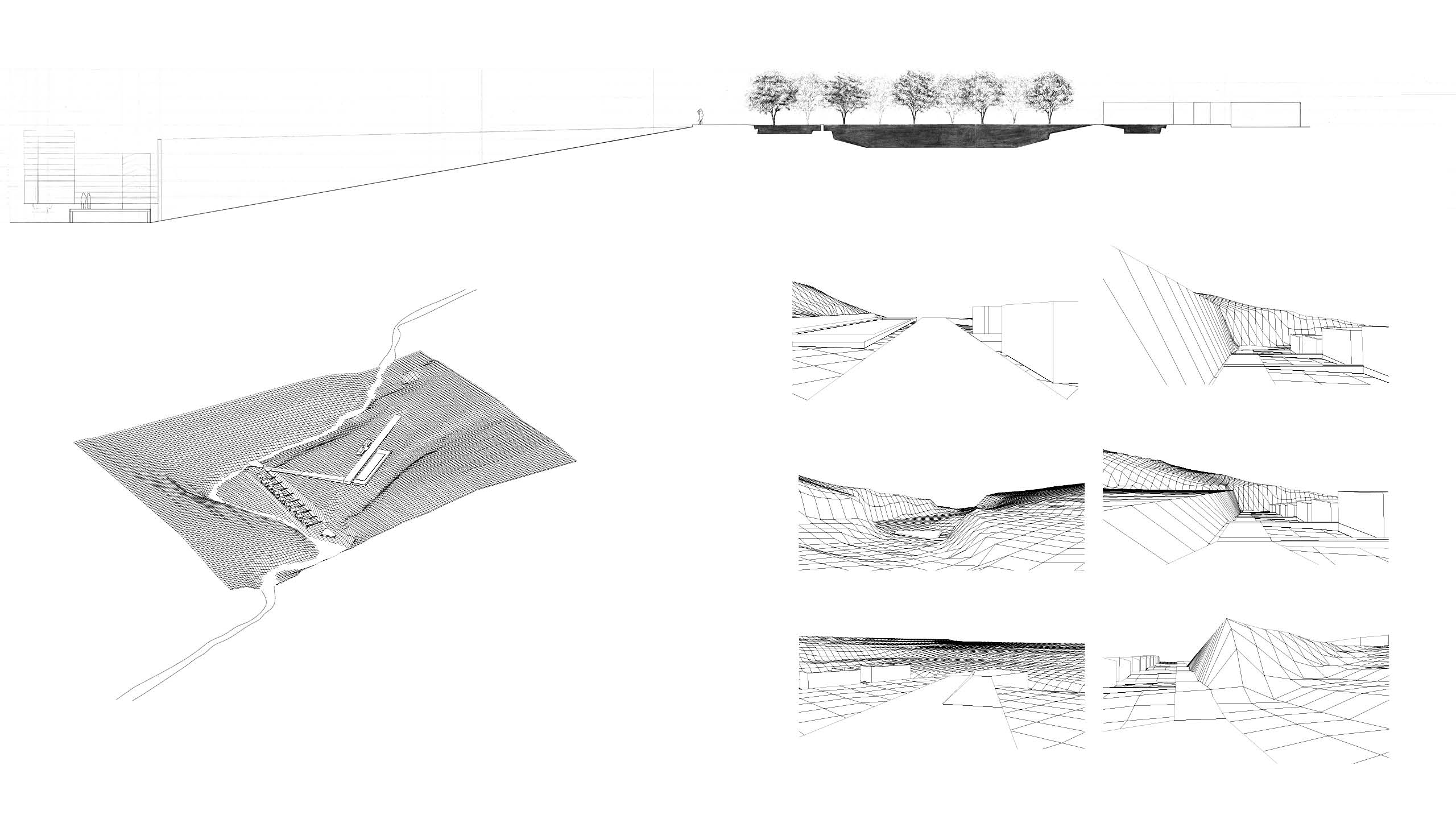

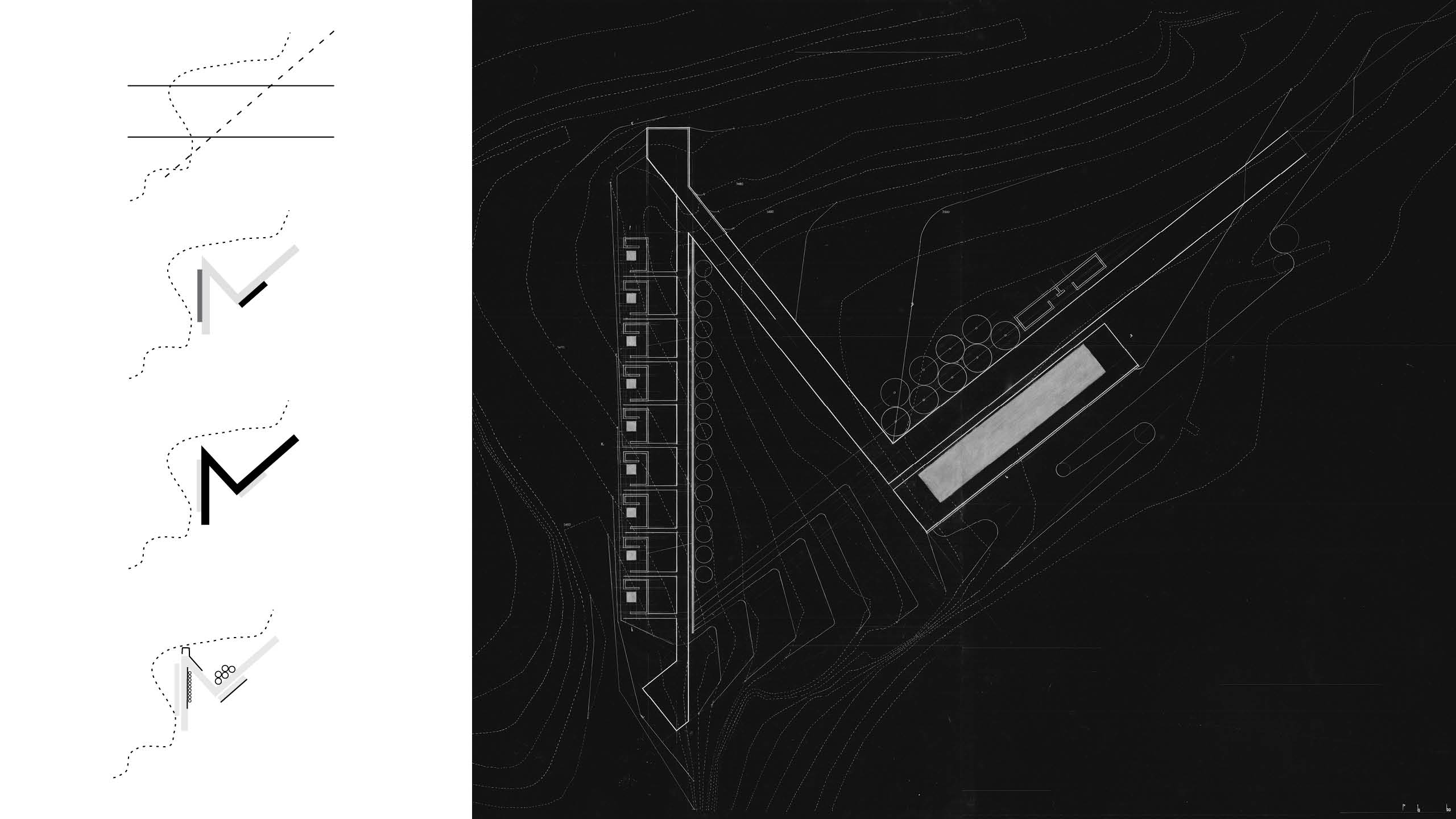

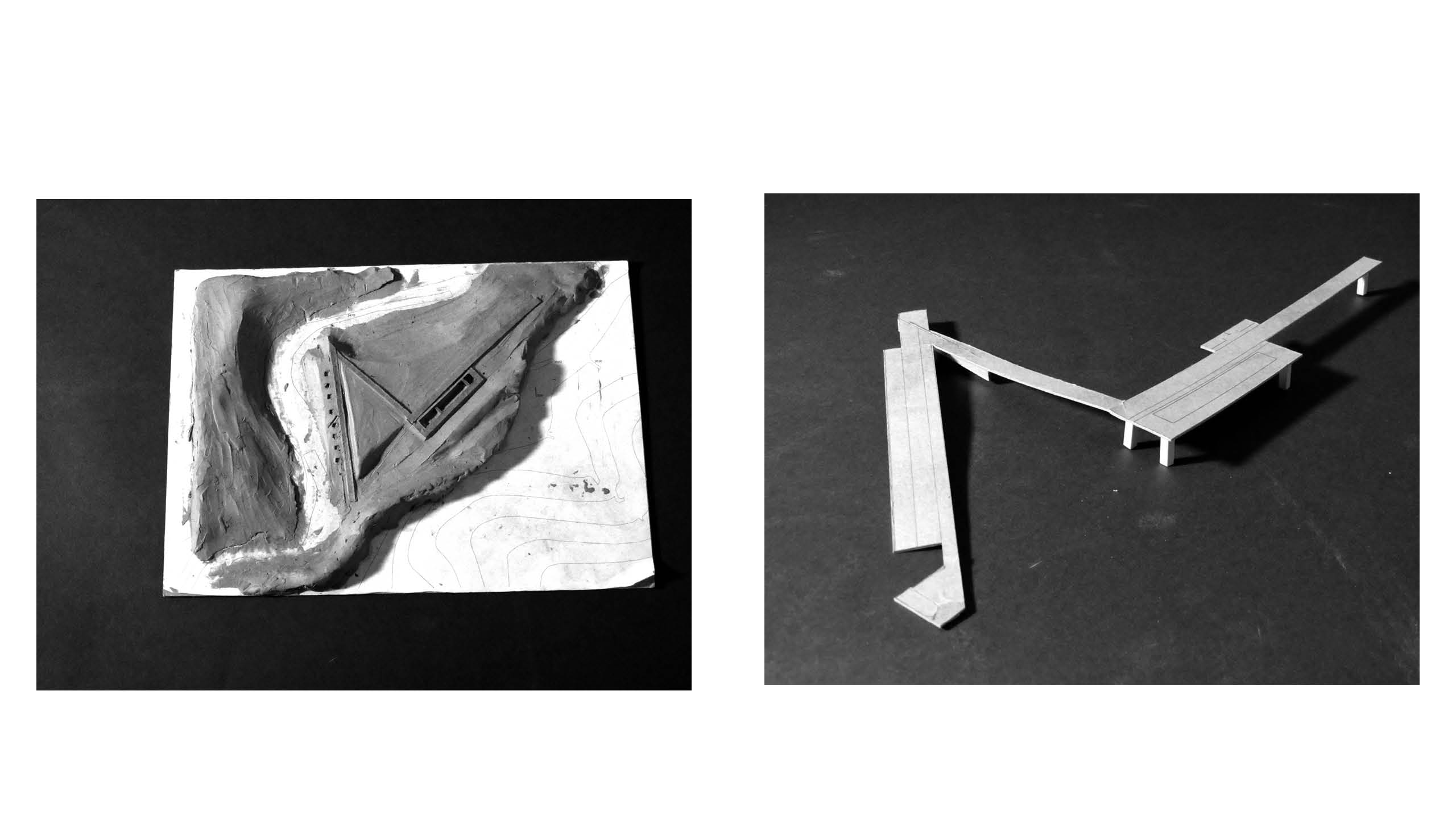

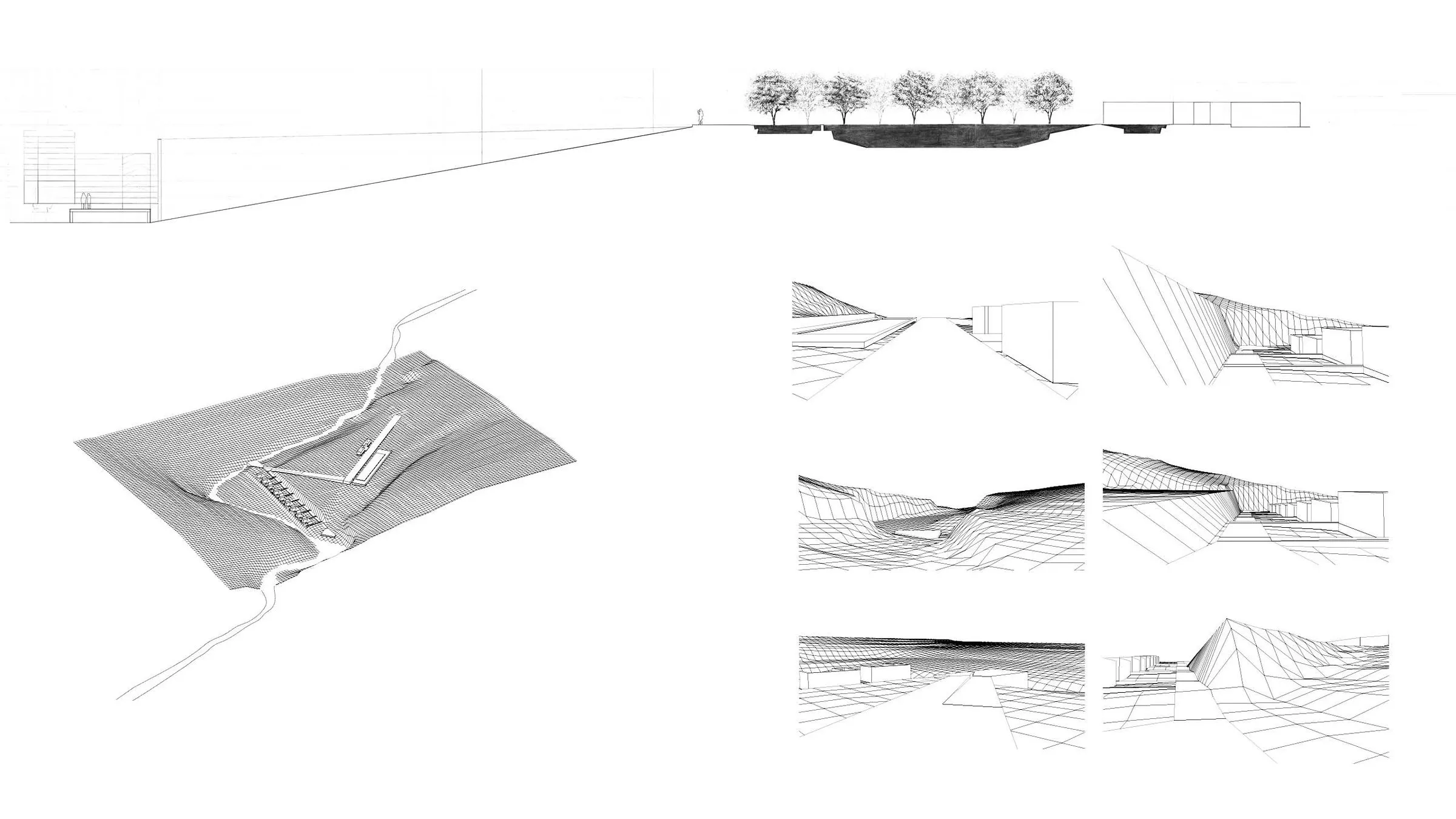

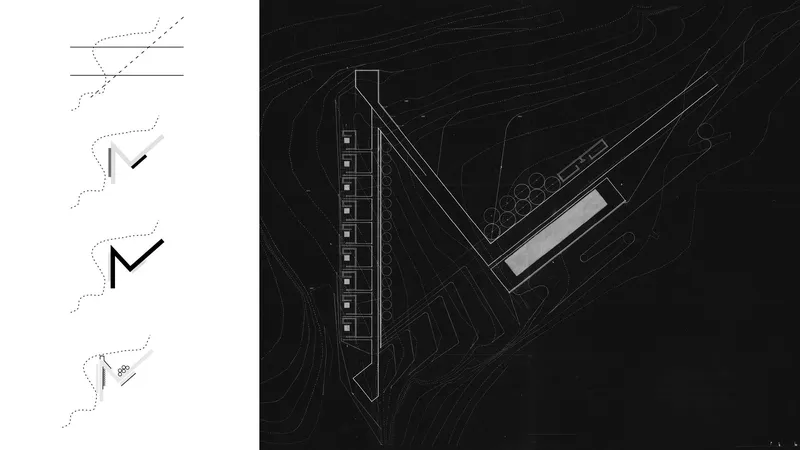

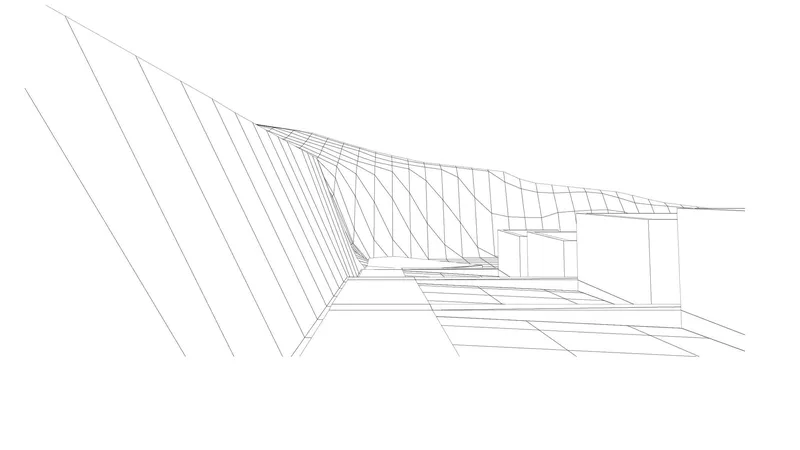

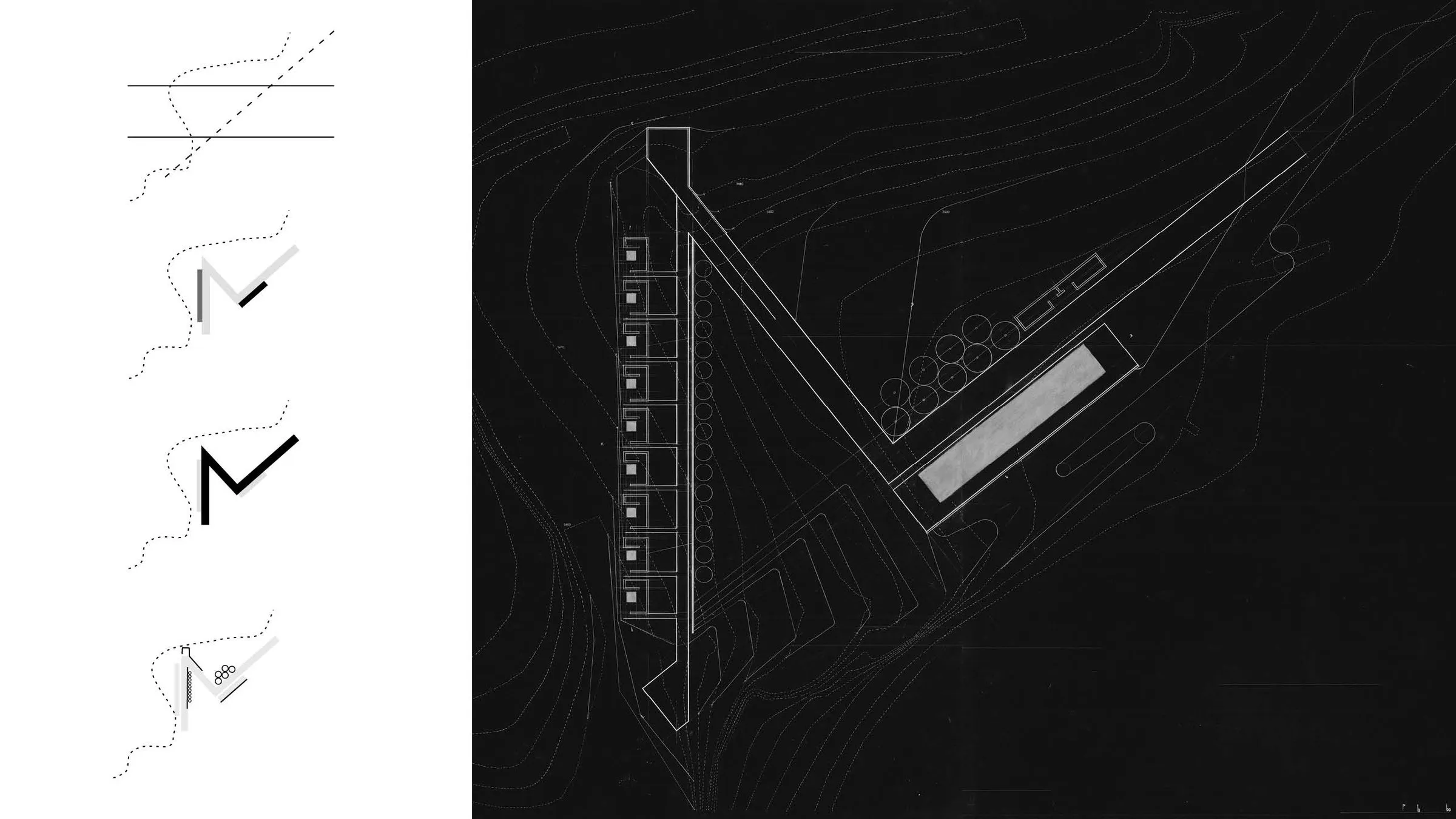

A building is set into a desert valley as two long arms meeting at an angle. One arm holds a row of cells along its length; the other runs out as a single bar. The plan is tested in solid site models, in section, and in a sequence of wireframe perspectives drawn from the terrain mesh.

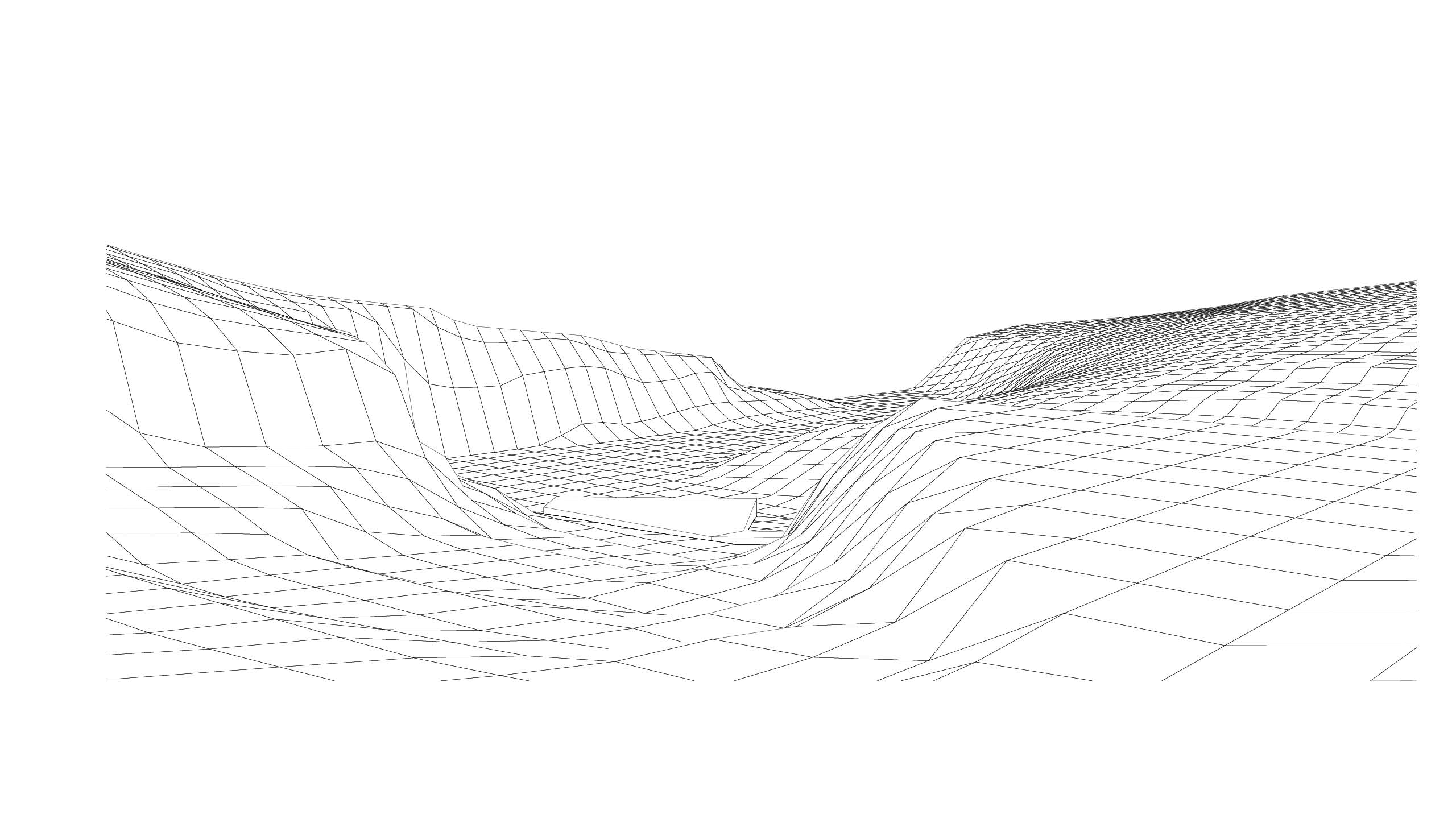

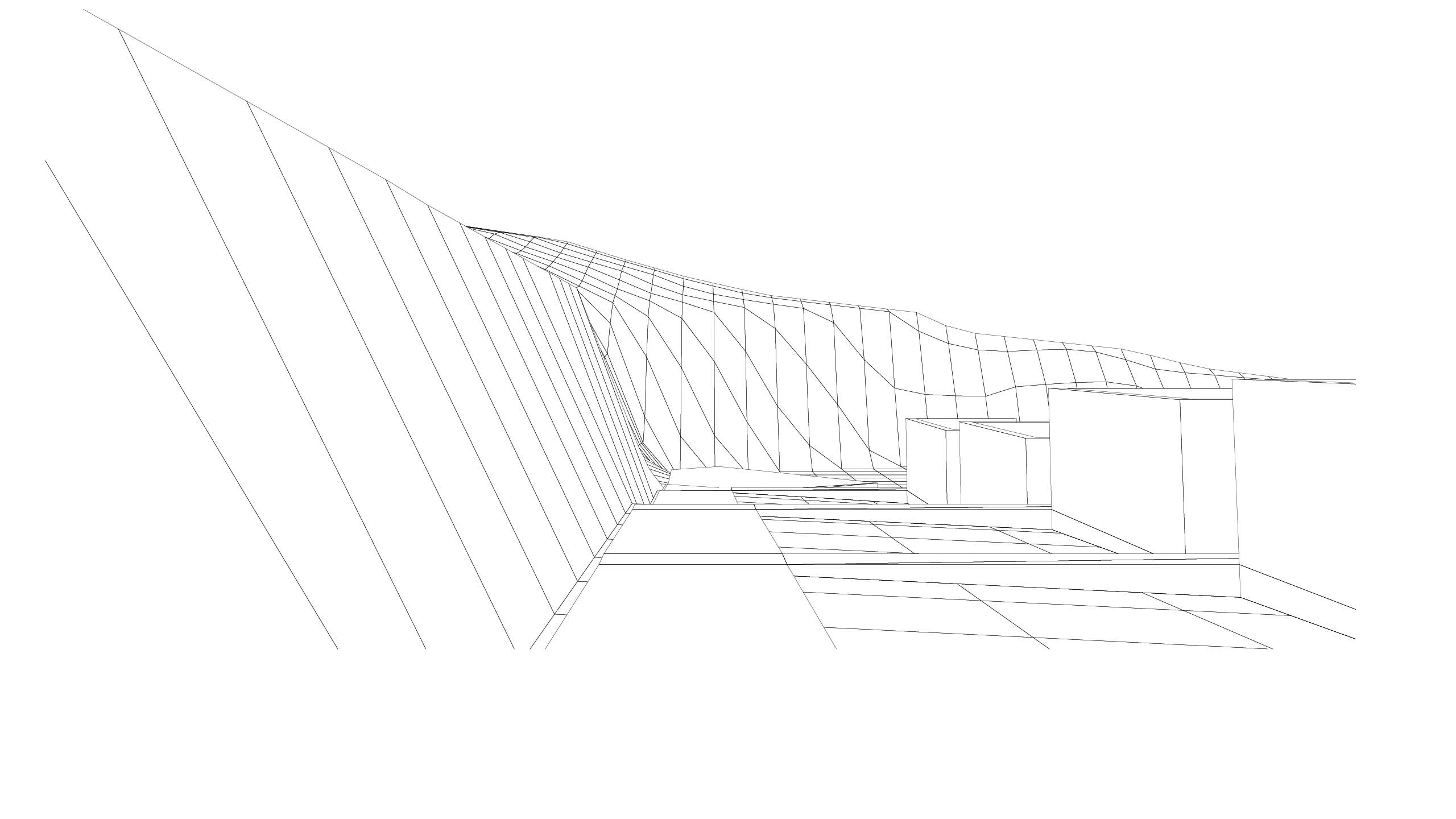

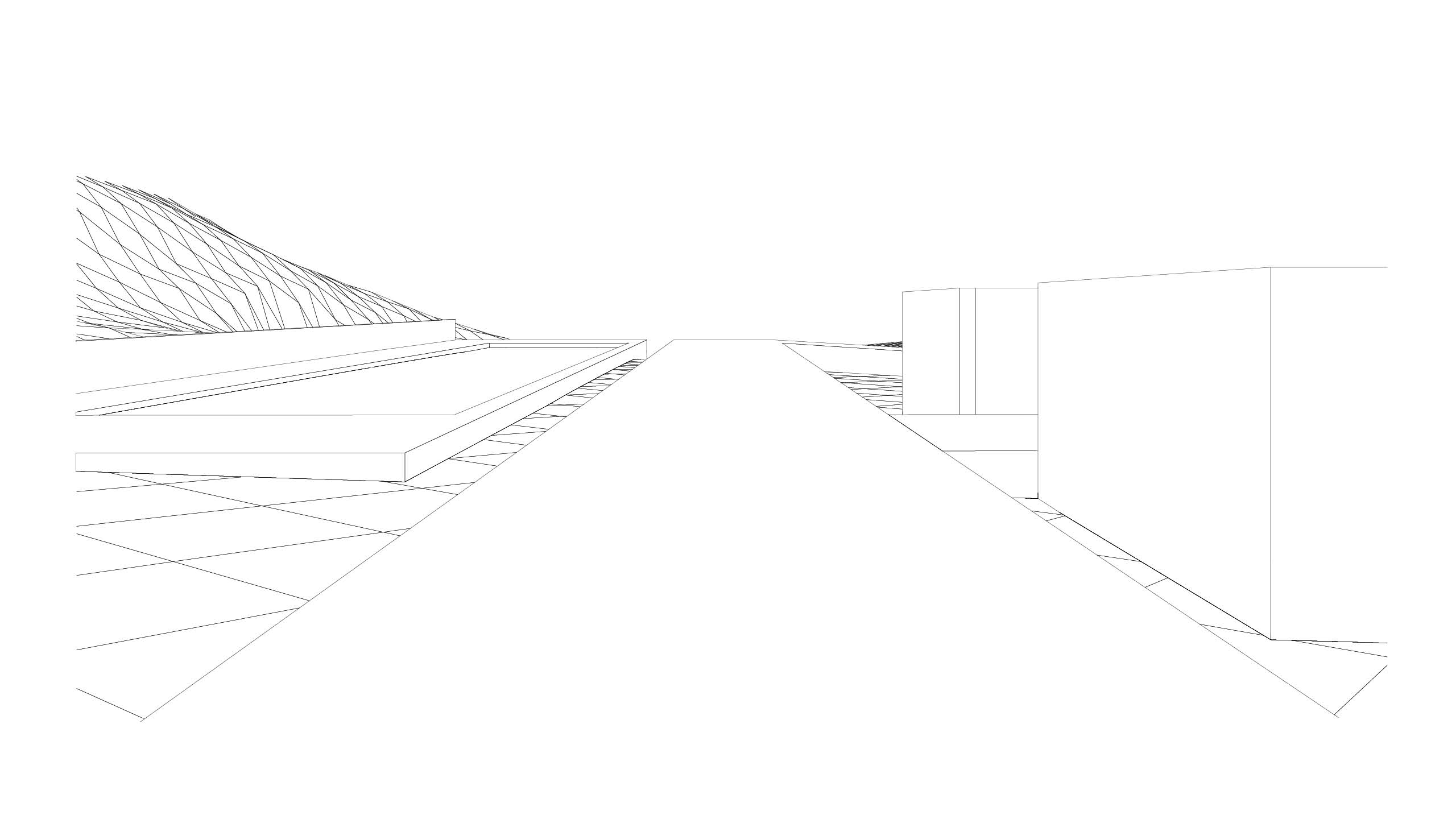

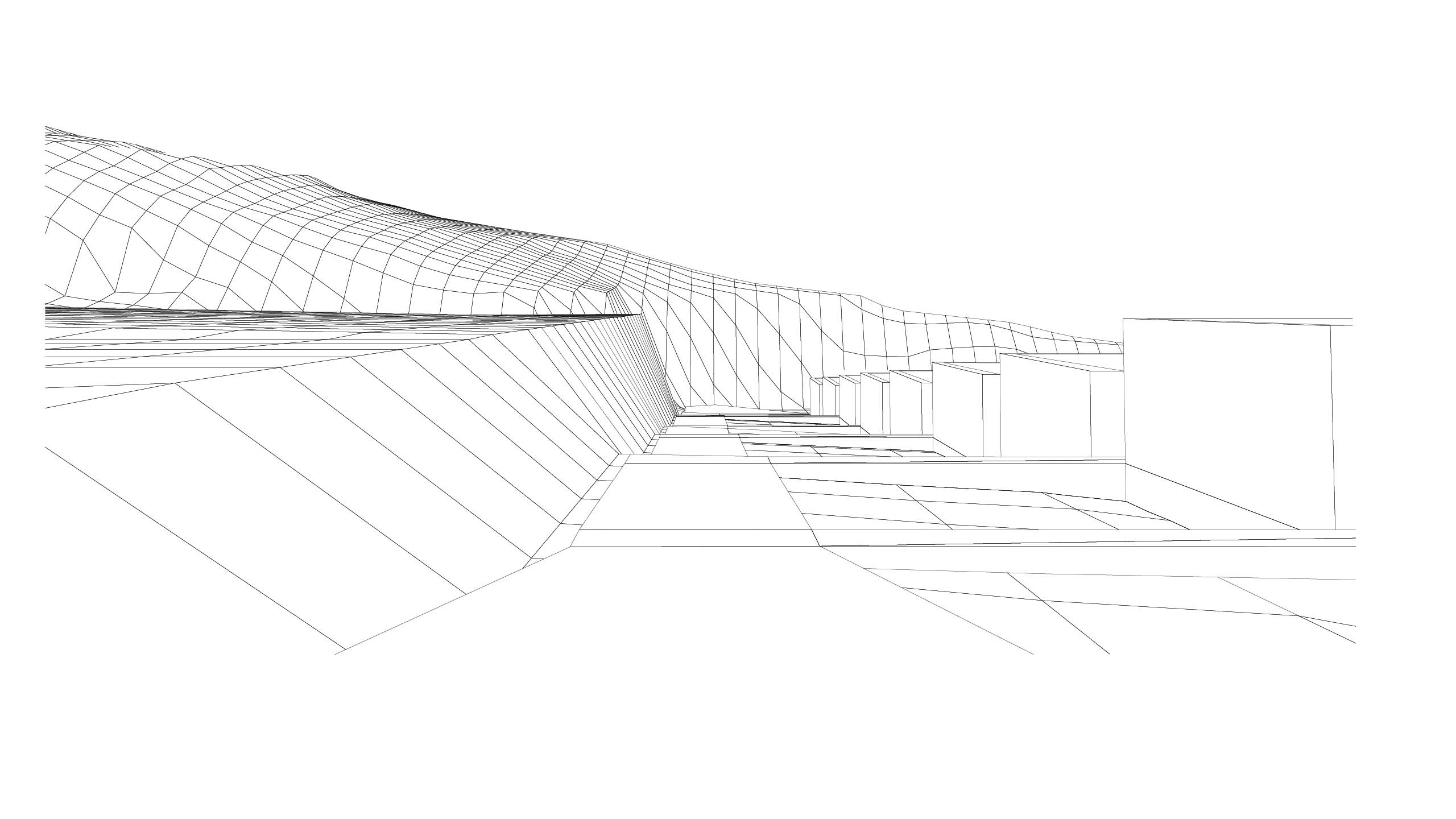

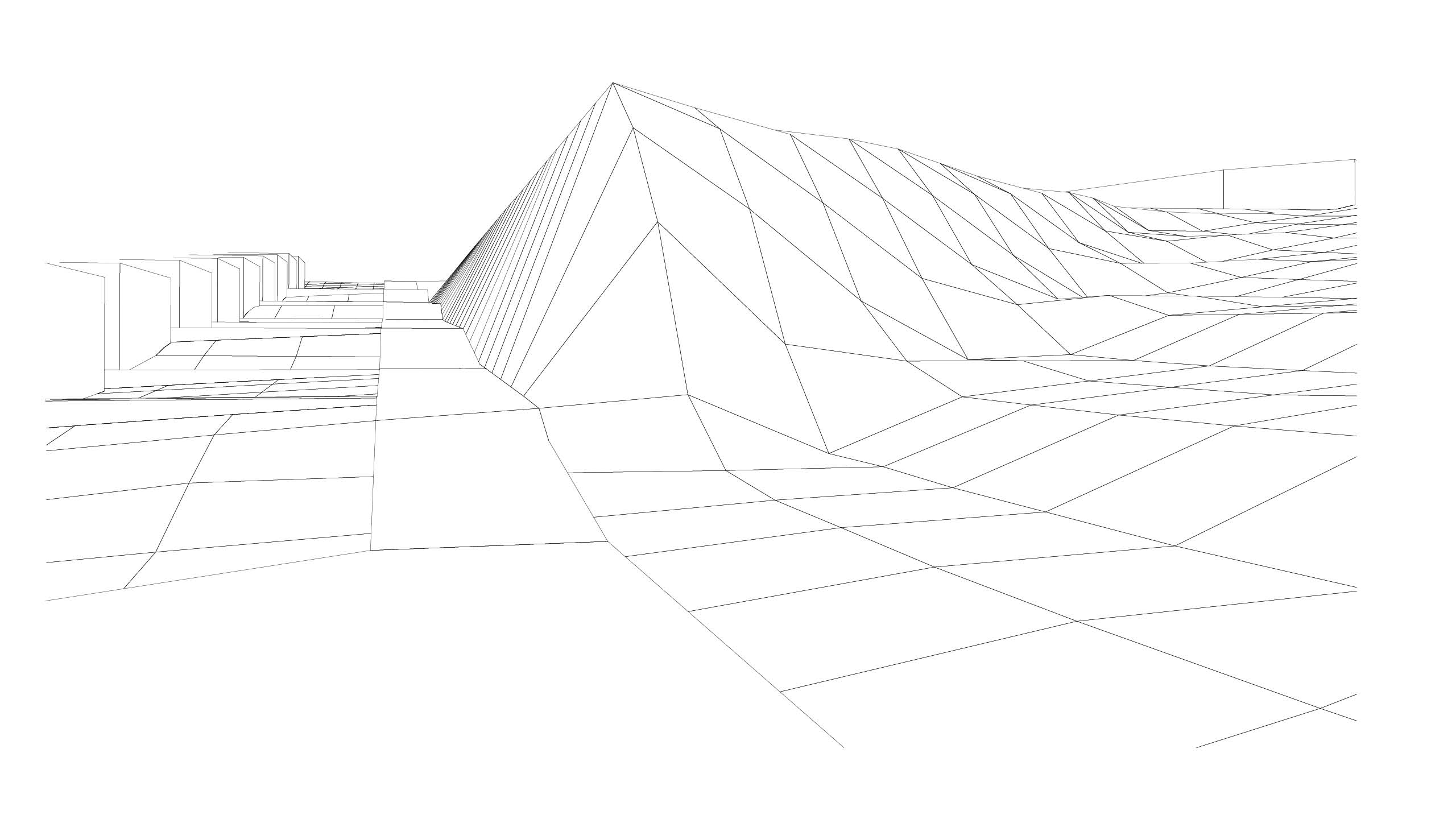

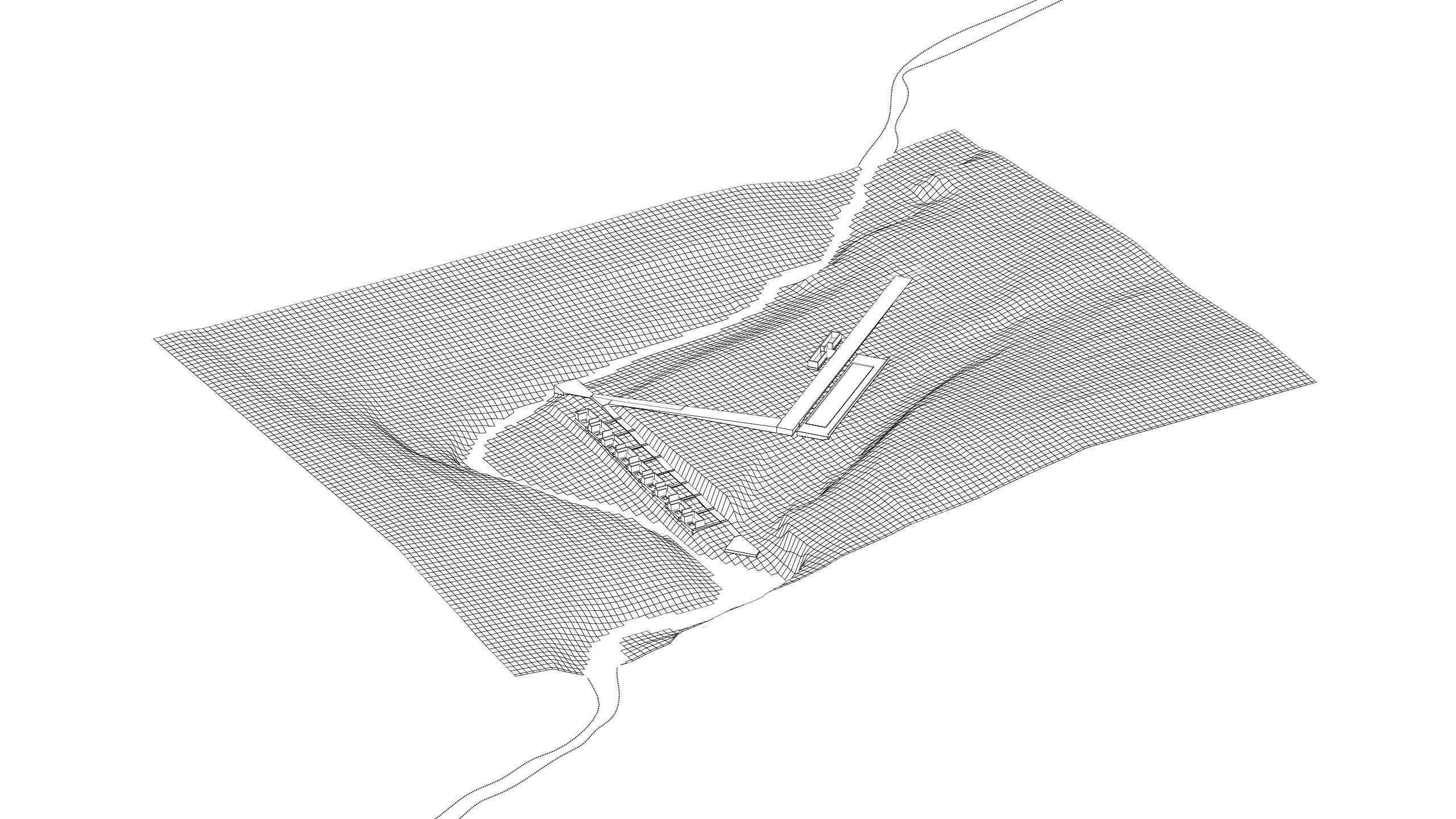

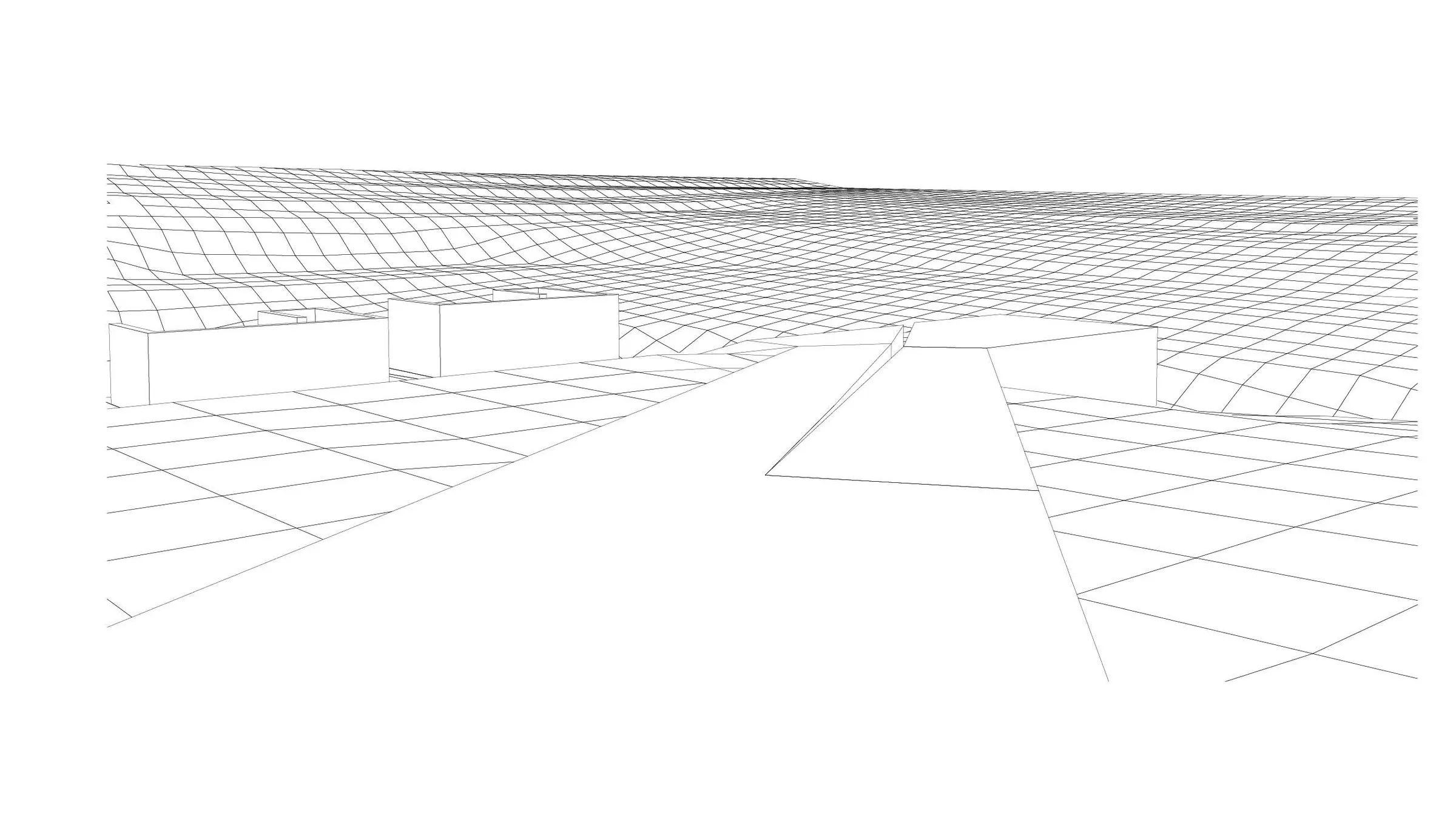

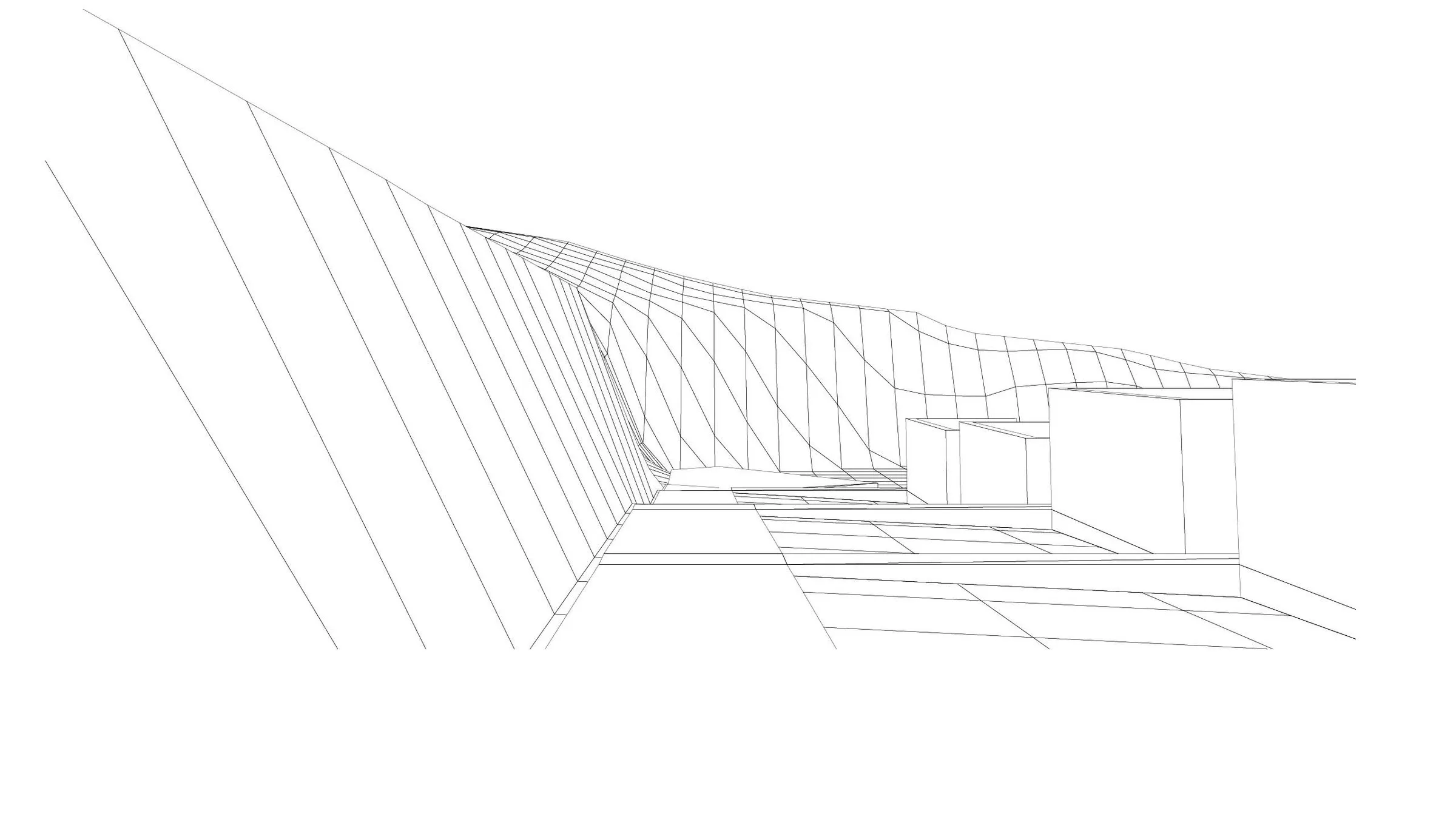

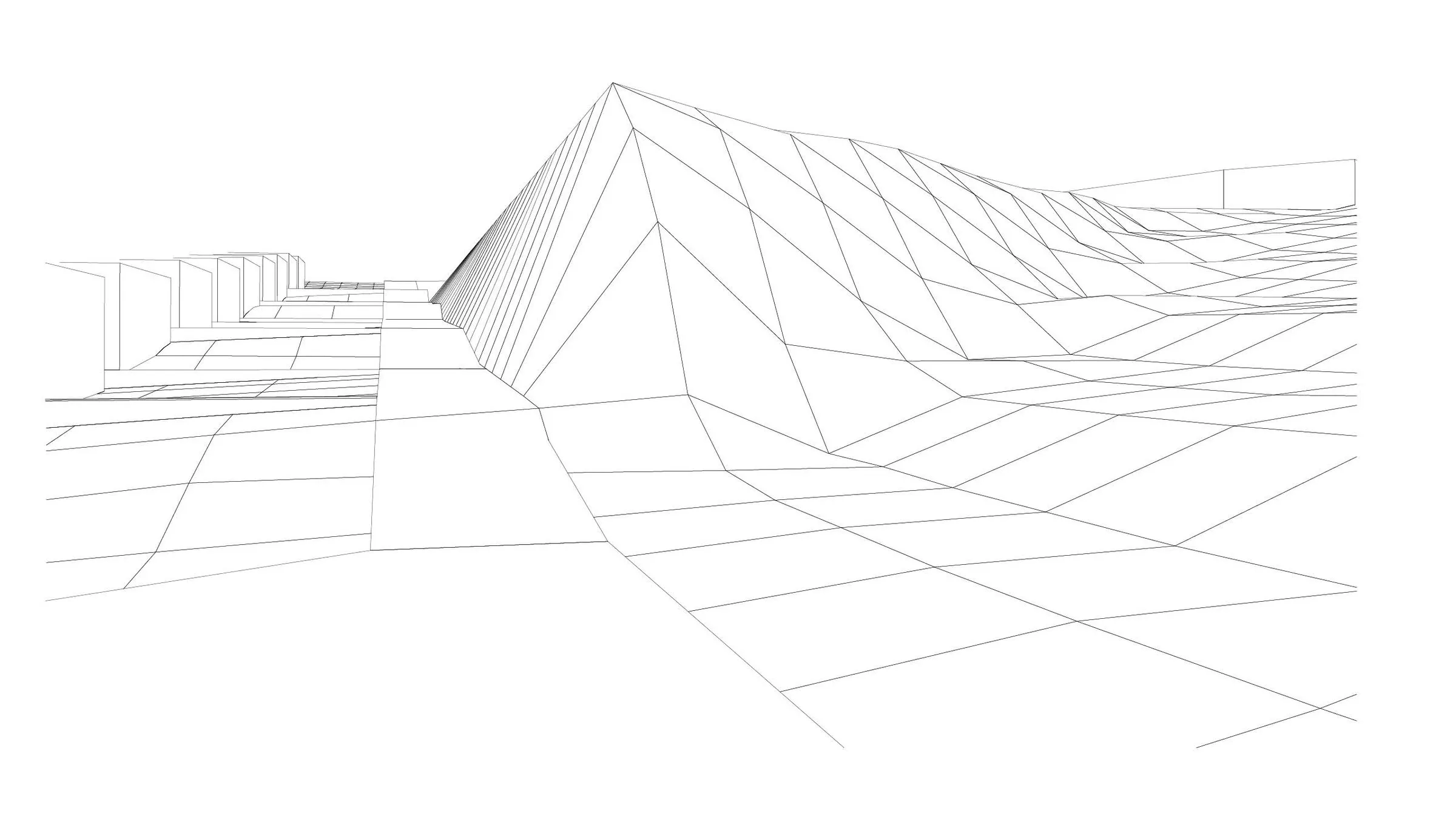

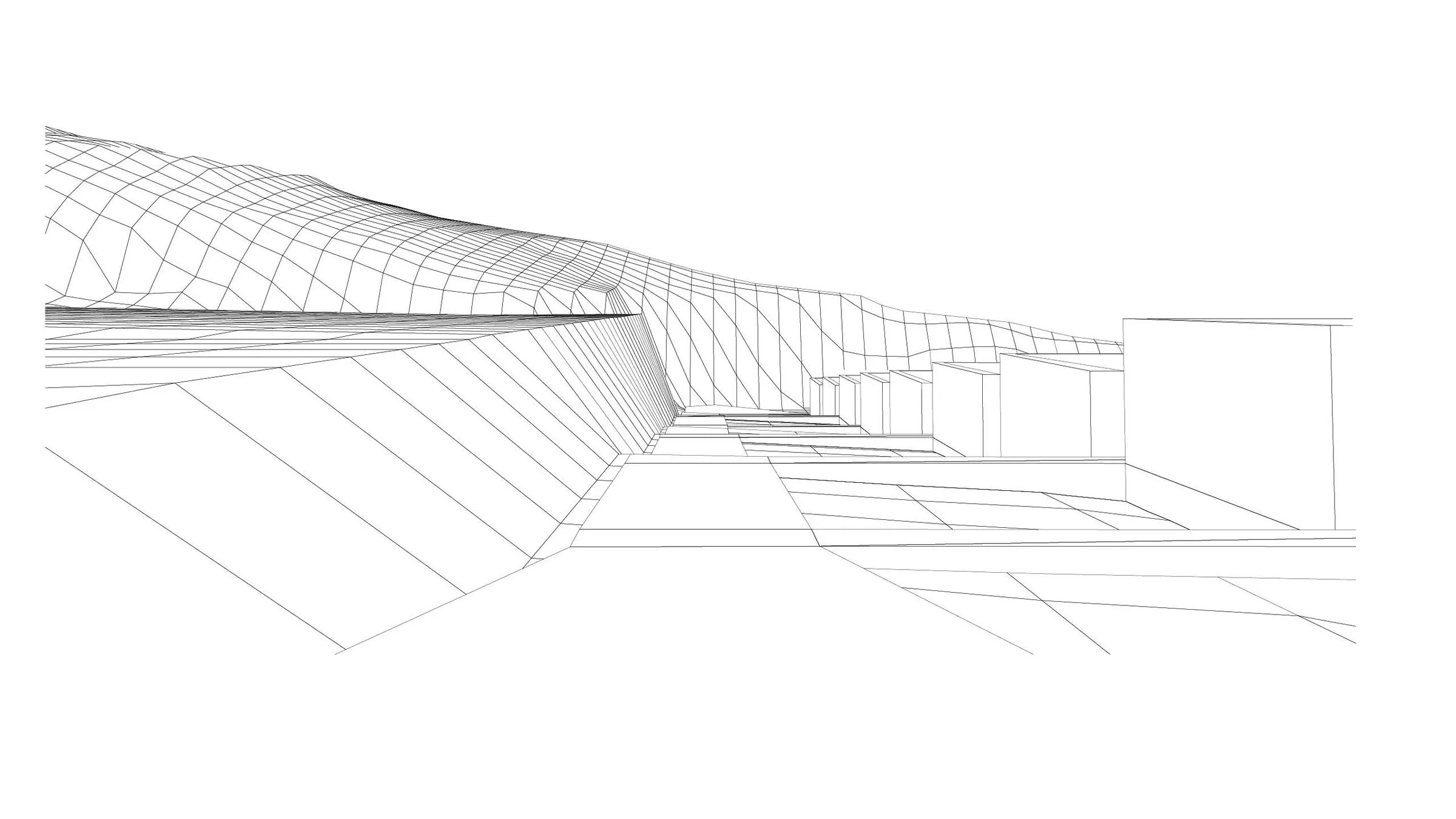

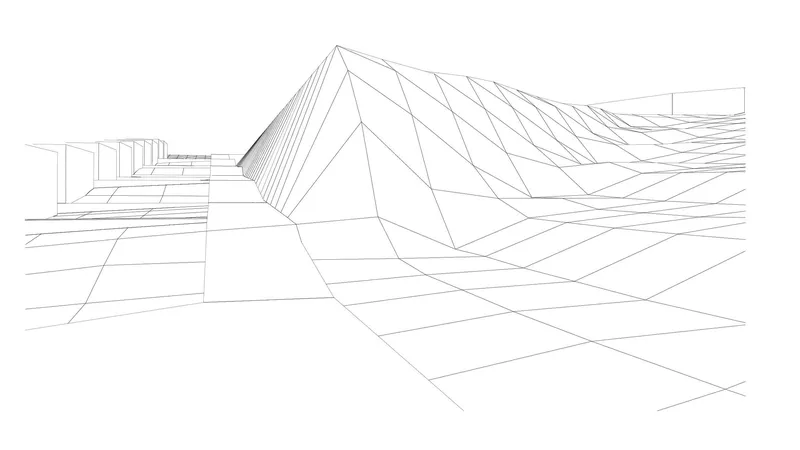

In the wireframes the ground and the walls share one grid, so it is not always clear where the valley ends and the building begins. A final render at dusk shows a sharp wedge rising from the hillside, the one point where the structure breaks the slope.

material
site models, digital terrain model
process
modeled, drawn, rendered
