burns patio

7 plates
burns patio — plate 01

description

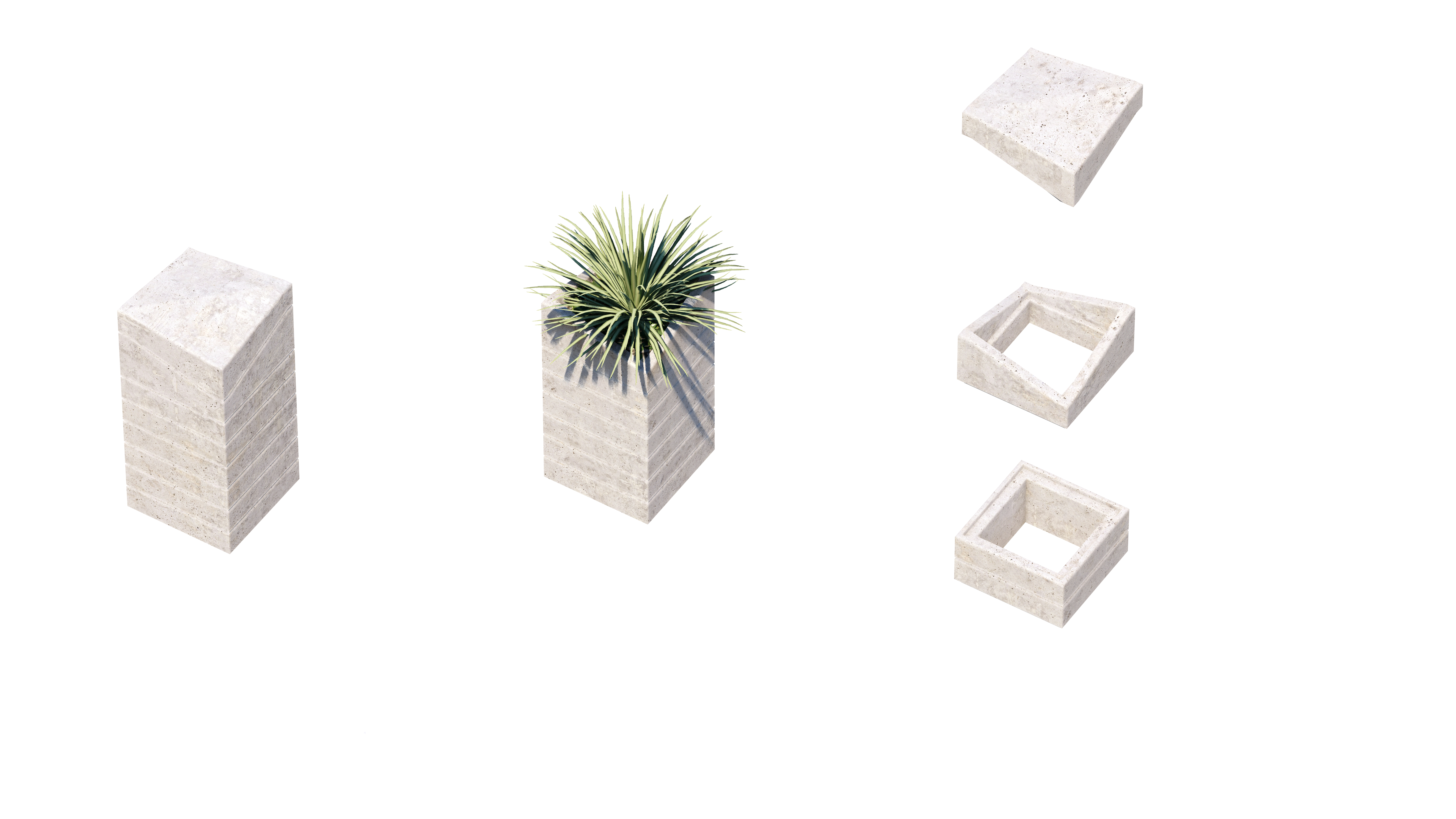

A streetfront planting is built from a single module: a square concrete box with its top cut on a slope. Rotated and combined, the boxes form a band of raised beds along a building frontage, some planted and some left empty, their sloped rims turned at different angles.

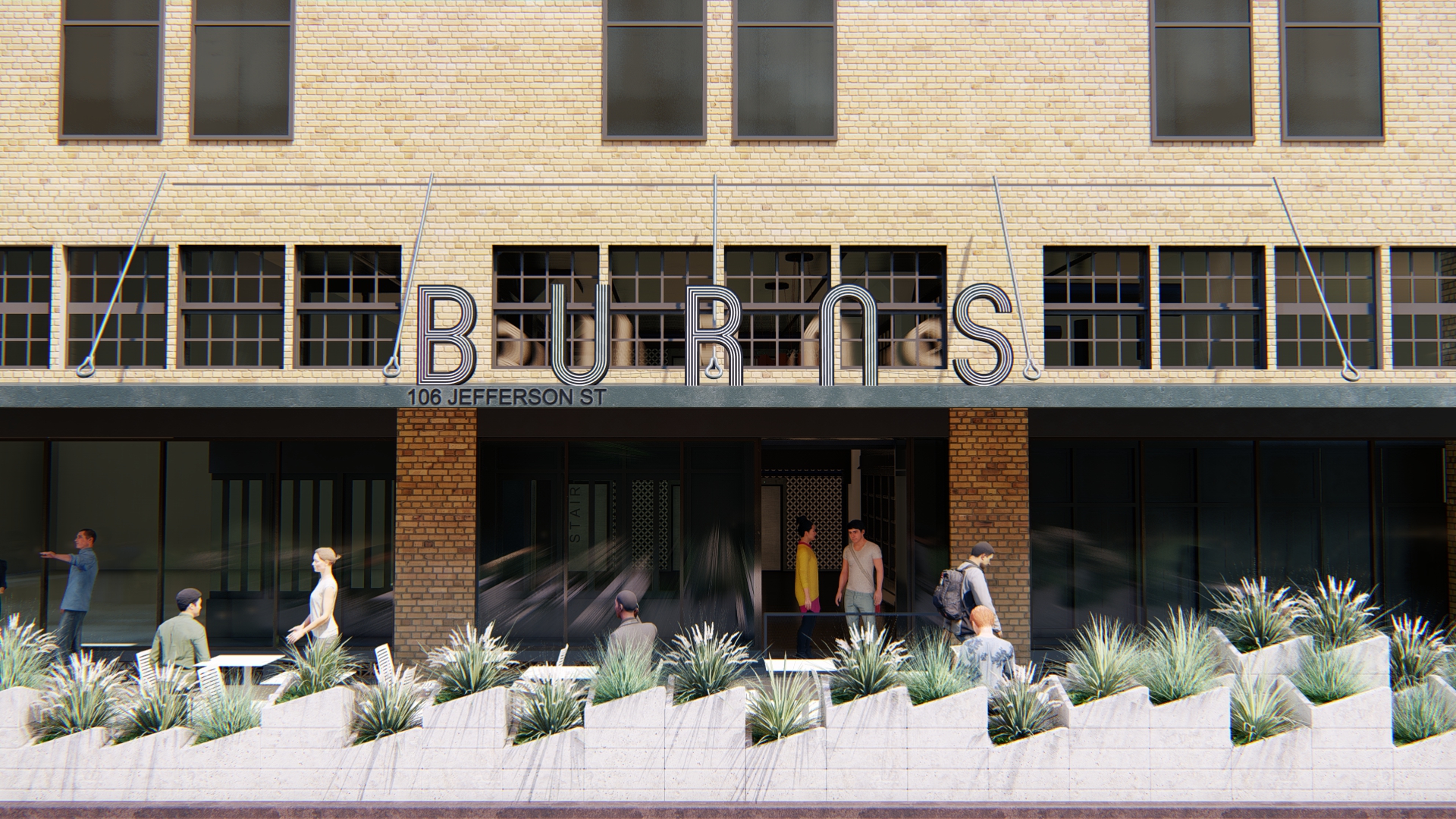

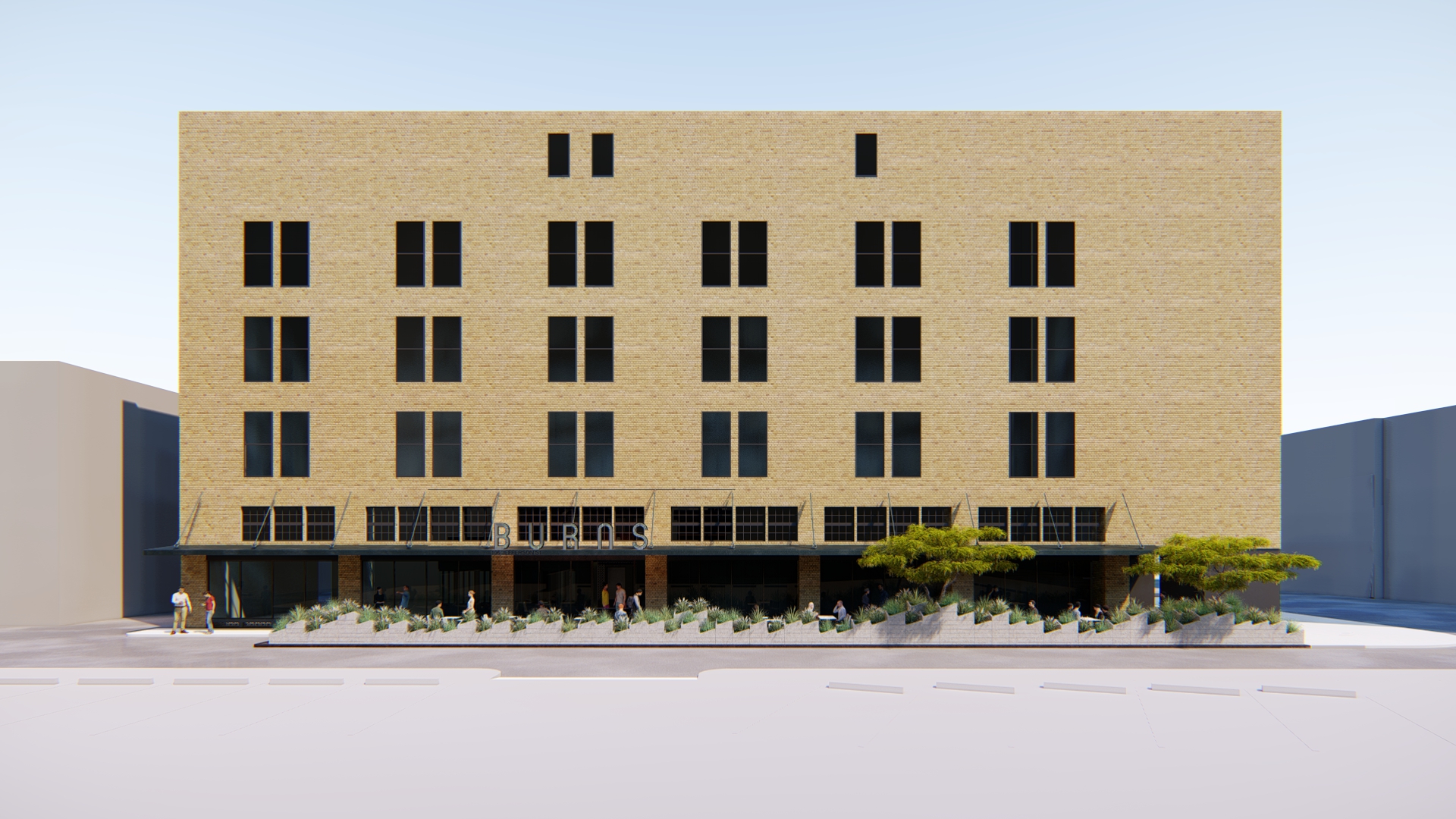

Plans and renders set the band out as a field rather than a row. Installed, the boxes are cast in pale concrete with horizontal form lines, and the angled tops overlap into a jagged ridge when seen from the sidewalk. Up close the empty modules read as small rooms. The variation comes entirely from rotation.

material
precast concrete planters, planting
dimensions
approx. 3 ft high modules
process
modeled, rendered, cast, installed
with
while at dwg.
