bastrop — plate 01

description

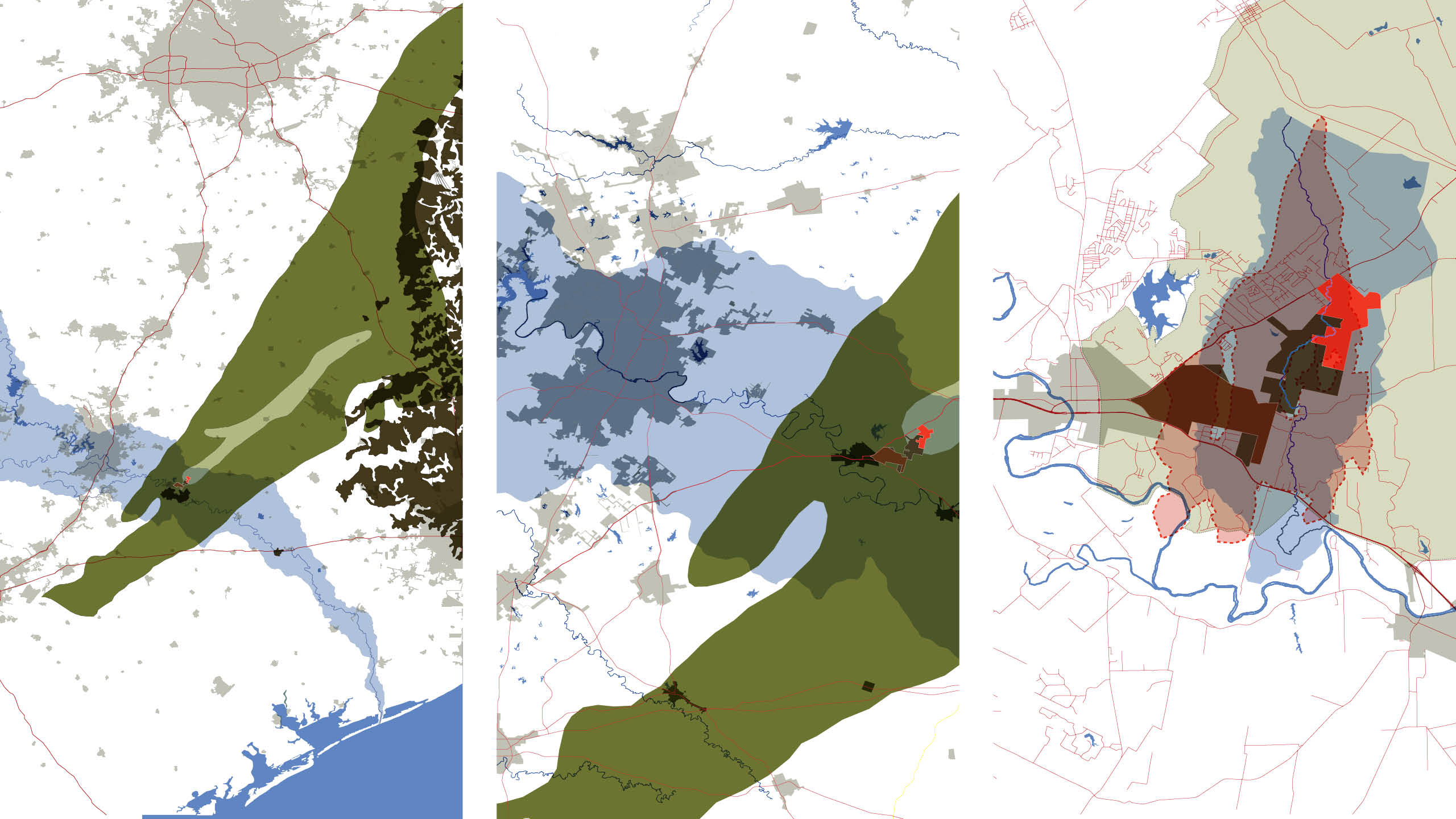

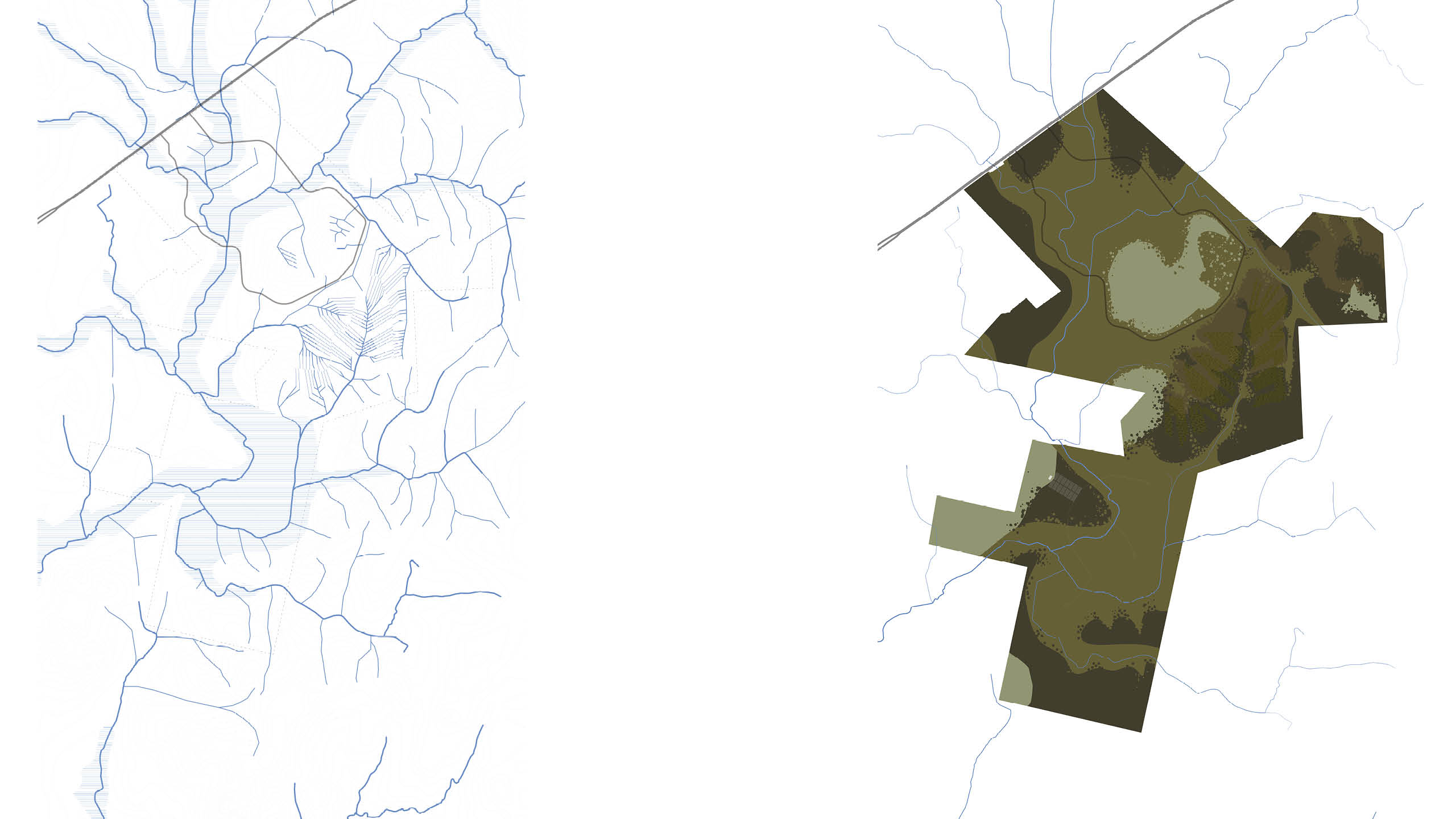

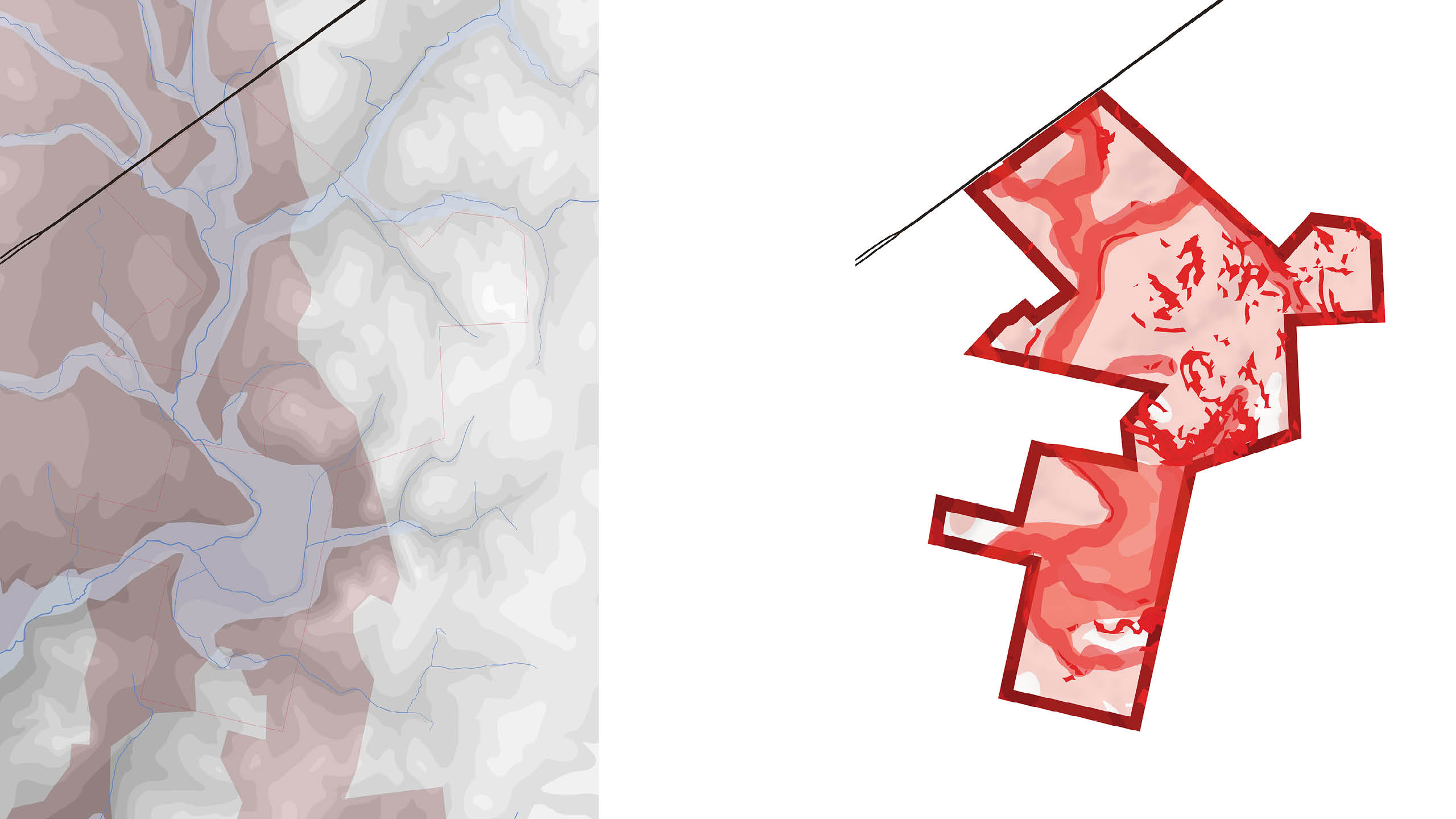

A burned pine forest is mapped at regional and site scales: soils, watersheds, burn severity, and vegetation drawn as separate layers. Soil blocks show the ground as prairie, shrub, and pine stand, and a plan lays a path network over an aerial of the site.

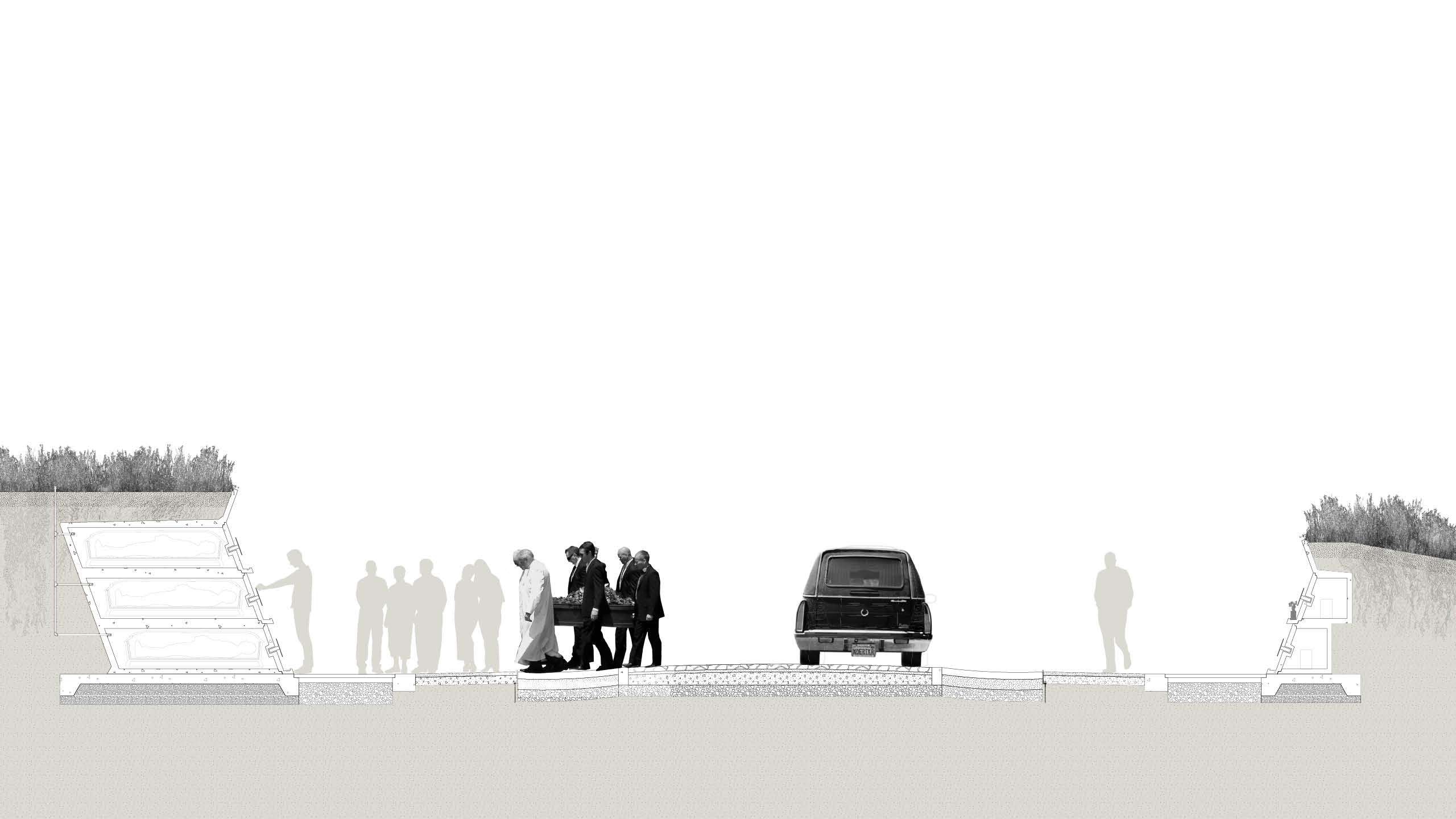

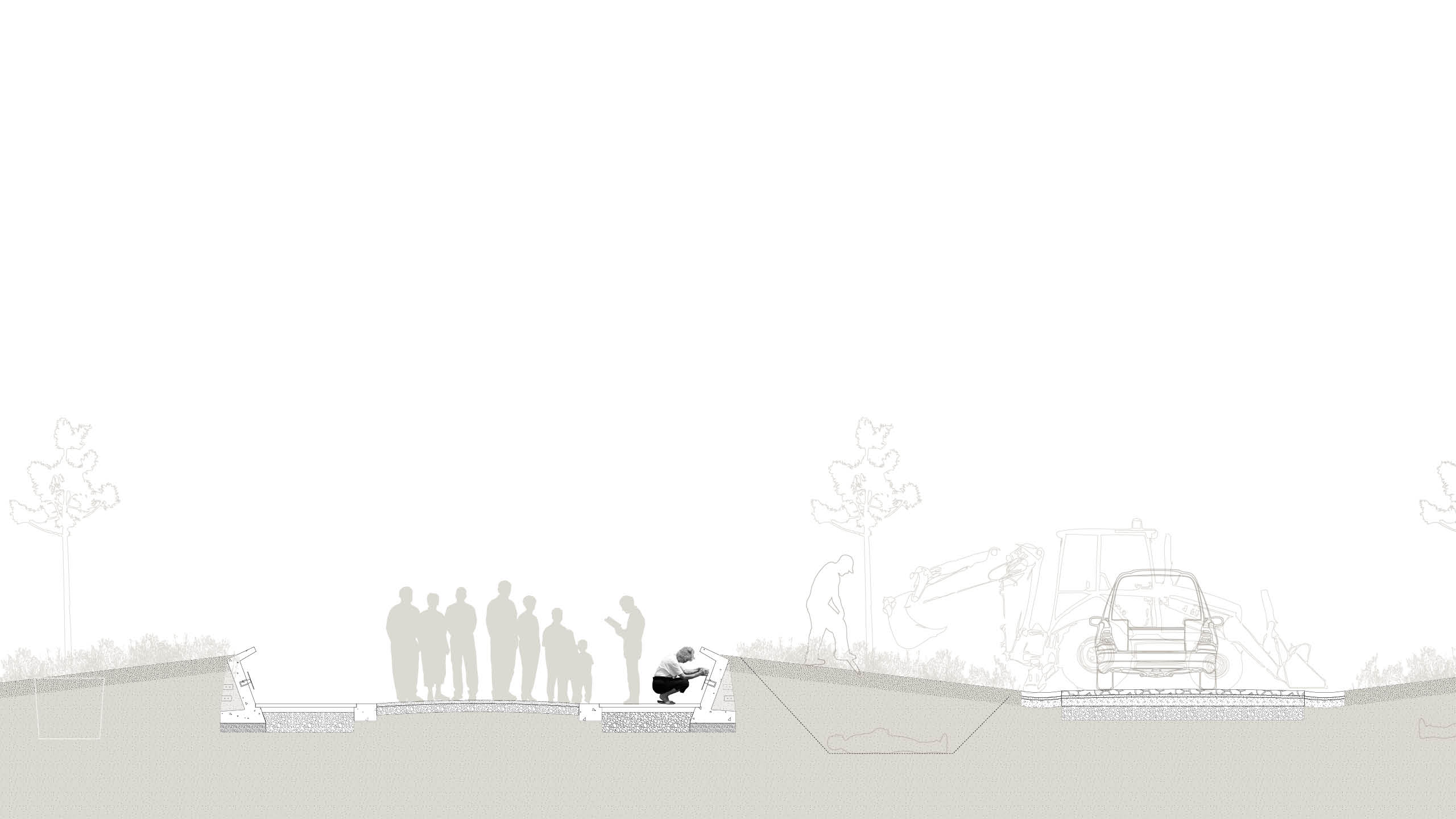

At eye level, a gravel road runs between rows of pine with low walls at its edges, and sections show people gathered along the route. One drawing holds a wall of small niches under a planted roof. An exploded axonometric stacks the path into strata of stone, soil, and trees, the same order the maps began with.

material
digital maps, collage renderings
process
mapped, layered, modeled, collaged
